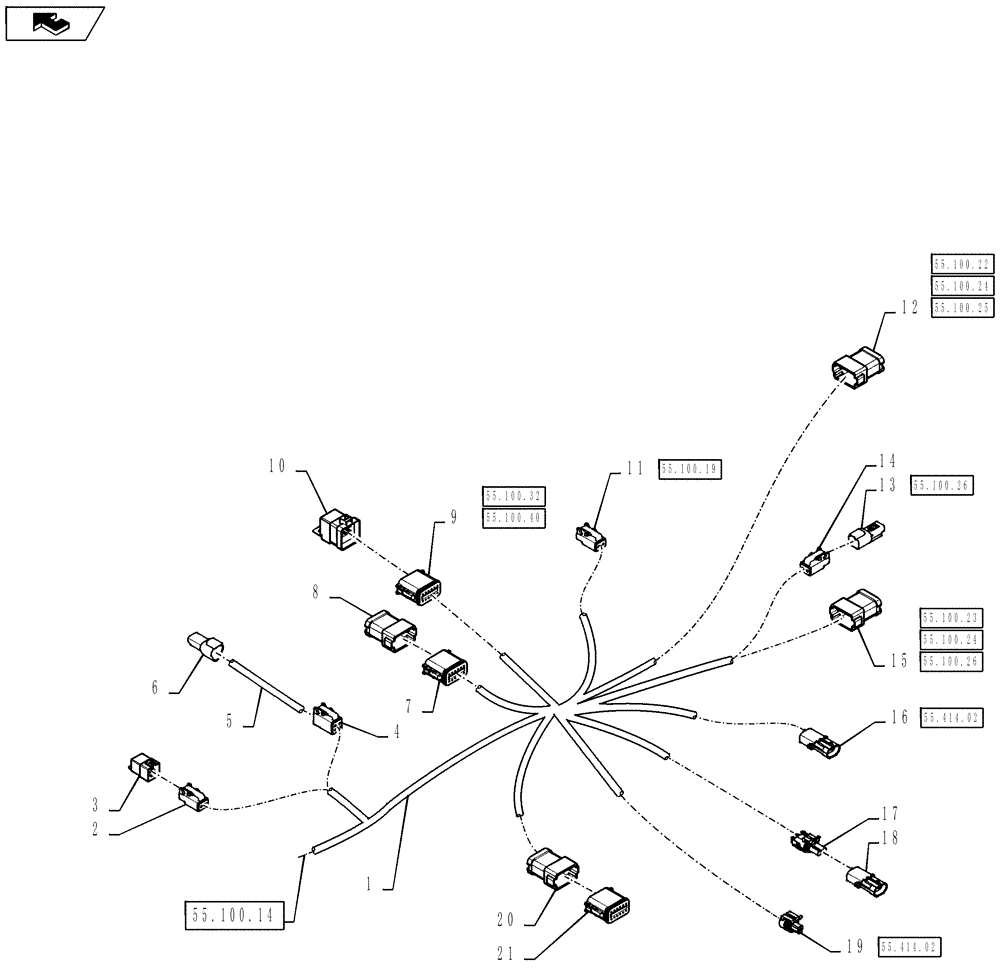

Запчасти Case IH 4430 (55.100.14[02]) - PRODUCT CONTROL HARNESS (55) - ELECTRICAL SYSTEMS

1

84397004

HARNESS

Product Control

1шт.

2

87695582

ELEC CONNECTOR,Female, 2 Pole

Controller Power, C501F

1шт.

87695649

ELEC CONNECTOR,Locking, Green

Controller Power, C501F

1шт.

225365C1

SOCKET

Controller Power, C501F

2шт.

3

84391159

WIRE CONNECTOR

Controller Power Cap, C501M

1шт.

4

87694153

CONTACT HOUSING,Female, 4 Cavities

Can Buss Interface, C210F

1шт.

87694146

ELEC CONNECTOR,Locking, Green

Can Buss Interface, C210F

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Can Buss Interface, C210F

2шт.

225365C1

SOCKET

Can Buss Interface, C210F

2шт.

5

87267294

WIRE HARNESS

Active Terminator Adaptor

1шт.

6

84058092

CONTACT HOUSING,120 Ohm Resistor

120A Terminator, C210B

1шт.

87695625

WIRE CONNECTOR,Locking, Green

120A Terminator, C210B

1шт.

7

87696075

ELEC CONNECTOR

Boom Wire Splice Pack, C607F

1шт.

87695651

LOCKING TAB,Wedge Lock

Boom Wire Splice Pack, C607F

1шт.

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Boom Wire Splice Pack, C607F

9шт.

84068583

PLUG,12 - 16 Ga, White

Boom Wire Splice Pack, C607F

3шт.

8

87587629

ELEC CONNECTOR

4 x 3 Way Splice Pack, SC607

1шт.

9

87696075

ELEC CONNECTOR

Product To Aim Command Interface, C522F

1шт.

87695651

LOCKING TAB,Wedge Lock

Product To Aim Command Interface, C522F

1шт.

84068583

PLUG,12 - 16 Ga, White

Product To Aim Command Interface, C522F

3шт.

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Product To Aim Command Interface, C522F

9шт.

10

84391169

CAP,Male, 2 Pins

Product To Aim Command Interface Cap, C522M

1шт.

11

87695582

ELEC CONNECTOR,Female, 2 Pole

Foam Marker, C416F

1шт.

87695649

ELEC CONNECTOR,Locking, Green

Foam Marker, C416F

1шт.

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Foam Marker, C416F

2шт.

12

225320C1

ELEC CONNECTOR

LH Boom Harness Interface, C509M

1шт.

225322C1

WEDGE

LH Boom Harness Interface, C509M

1шт.

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

LH Boom Harness Interface, C509M

2шт.

381417A1

TERMINAL,Male, Nickel, 0.50 - 1.00mm

LH Boom Harness Interface, C509M

6шт.

13

87695584

CONTACT HOUSING,Male, 2 Cavities

RH Boom Harness Section 7, C511M

1шт.

87577731

CONTACT HOUSING,2 Pole

RH Boom Harness Section 7, C511M

1шт.

84068583

PLUG,12 - 16 Ga, White

RH Boom Harness Section 7, C511M

1шт.

381417A1

TERMINAL,Male, Nickel, 0.50 - 1.00mm

RH Boom Harness Section 7, C511M

1шт.

14

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Boom Harness Section 7 Cap, C511F

1шт.

87695649

ELEC CONNECTOR,Locking, Green

RH Boom Harness Section 7 Cap, C511F

1шт.

84068583

PLUG,12 - 16 Ga, White

RH Boom Harness Section 7 Cap, C511F

2шт.

15

225320C1

ELEC CONNECTOR

RH Boom Harness Interface, C510M

1шт.

225322C1

WEDGE

RH Boom Harness Interface, C510M

1шт.

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

RH Boom Harness Interface, C510M

2шт.

381417A1

TERMINAL,Male, Nickel, 0.50 - 1.00mm

RH Boom Harness Interface, C510M

6шт.

16

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Boom PSI Switch, C514M

1шт.

225119C1

TERMINAL

Boom PSI Switch, C514M

2шт.

17

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Boom PSI Switch Shorting, C516M

1шт.

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

Boom PSI Switch Shorting, C516M

2шт.

18

87692855

CONTACT HOUSING,Male, 2 Cavities

Boom PSI Shorting Plug, C516F

1шт.

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

Boom PSI Shorting Plug, C516F

2шт.

19

84078681

WIRE CONNECTOR,Female

Boom PSI Sensor, C515F

1шт.

87693328

TERMINAL

Boom PSI Sensor, C515F

3шт.

20

87696075

ELEC CONNECTOR

Boom Wire Splice Pack, C601F

1шт.

87695651

LOCKING TAB,Wedge Lock

Boom Wire Splice Pack, C601F

1шт.

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Boom Wire Splice Pack, C601F

12шт.

21

87587629

ELEC CONNECTOR

Boom Wire 4 x 3 Way Splice Pack, C601M

1шт.
