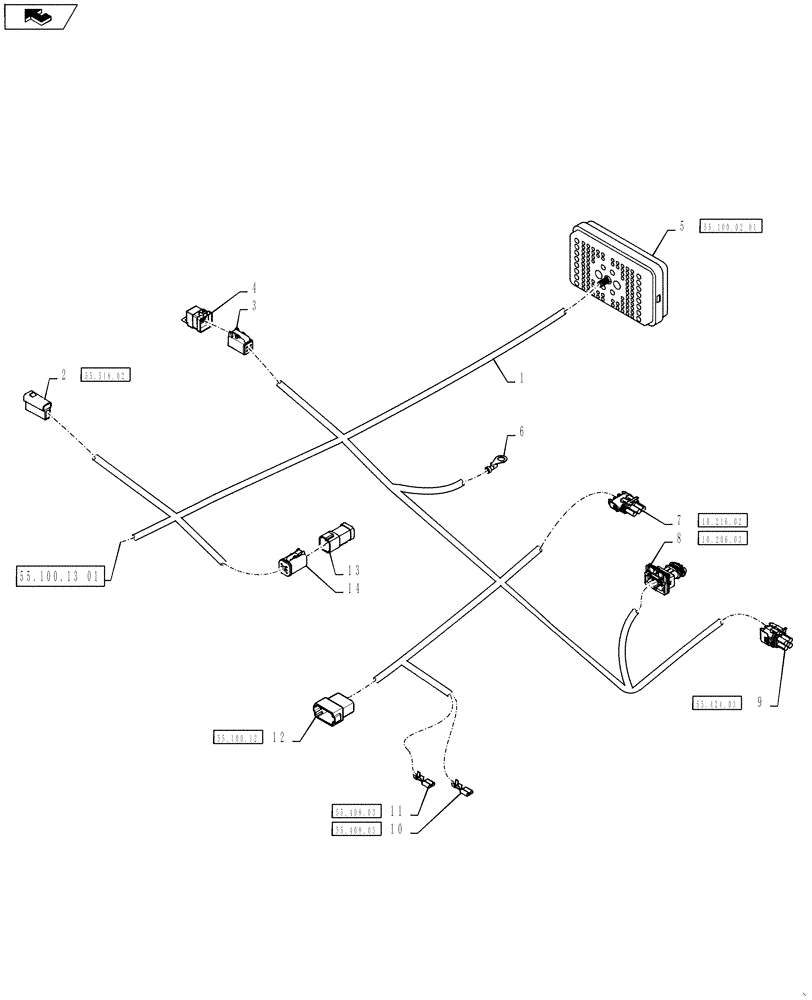

Запчасти Case IH 4430 (55.100.13[02]) - FRAME HARNESS (55) - ELECTRICAL SYSTEMS

1

84488932

WIRE HARNESS

Frame Harness

1шт.

2

314908A1

CONNECTOR, ELEC

CONNECTOR Windshield Washer Pump, C625F

1шт.

87688841

SPADE TERMINAL,Female, 1 - 2 mm2

Windshield Washer Pump, C625F

2шт.

3

87694112

ELEC CONNECTOR,Female, 6 Pole

Mirror, C612F

1шт.

87694150

LOCKING TAB,Wedge Lock

Mirror, C612F

1шт.

225365C1

SOCKET

Mirror, C612F

6шт.

4

84391167

CAP

Mirror Cap, C612F

1шт.

5

437552A1

ELEC CONNECTOR,Female, 102 Pin

Cab Bulkhead, C006F

1шт.

87708094

WEDGE

LH Wedge, Cab Bulkhead, C006F

1шт.

87708095

WEDGE

RH Wedge, Cab Bulkhead, C006F

1шт.

84479010

BOOT

Rubber Boot, Cab Bulkhead, C006F

1шт.

84068583

PLUG,12 - 16 Ga, White

Cab Bulkhead, C006F

34шт.

453132C1

PLUG

Cab Bulkhead, C006F

4шт.

225366C1

ELEC. TERMINAL PIN,Male, Gold, 0.75 - 2.00mm

Cab Bulkhead, C006F

60шт.

6

225065C1

ELEC CONNECTOR,3.00 - 5.00mm

CONNECTOR Ground, GND-003

1шт.

7

87644909

WIRE CONNECTOR,Female, 3 Pins

Fuel Sender, C610F

1шт.

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

Fuel Sender, C610F

3шт.

8

8602416

CONNECTOR,ELECTRIC

Water in Fuel Sensor, C666F

1шт.

84607244

ELEC. TERMINAL PIN,Female, 0.5 - 1 mm2

Water in Fuel Sensor, C666F

3шт.

9

245715C1

ELEC CONNECTOR,4 Pin

Radar Interface, C603F

1шт.

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

Radar Interface, C603F

4шт.

10

225178C1

CONNECTOR, ELEC

CONNECTOR Horn -, C616F

1шт.

11

225178C1

CONNECTOR, ELEC

CONNECTOR Horn +, C615F

1шт.

12

87695724

ELEC CONNECTOR,Male, 12 Pole

Front Light Harness Interface, C640M

1шт.

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Front Light Harness Interface, C640M

1шт.

87695652

PLUG,12 - 16 Ga, White

Front Light Harness Interface, C640M

3шт.

225366C1

ELEC. TERMINAL PIN,Male, Gold, 0.75 - 2.00mm

Front Light Harness Interface, C640M

9шт.

13

87694112

ELEC CONNECTOR,Female, 6 Pole

Splice, CS47FA

1шт.

87694150

LOCKING TAB,Wedge Lock

Splice, CS47FA

1шт.

225365C1

SOCKET

Splice, CS47FA

6шт.

14

87587623

CONTACT HOUSING

6 Way Splice Pack, CS47MA

1шт.
