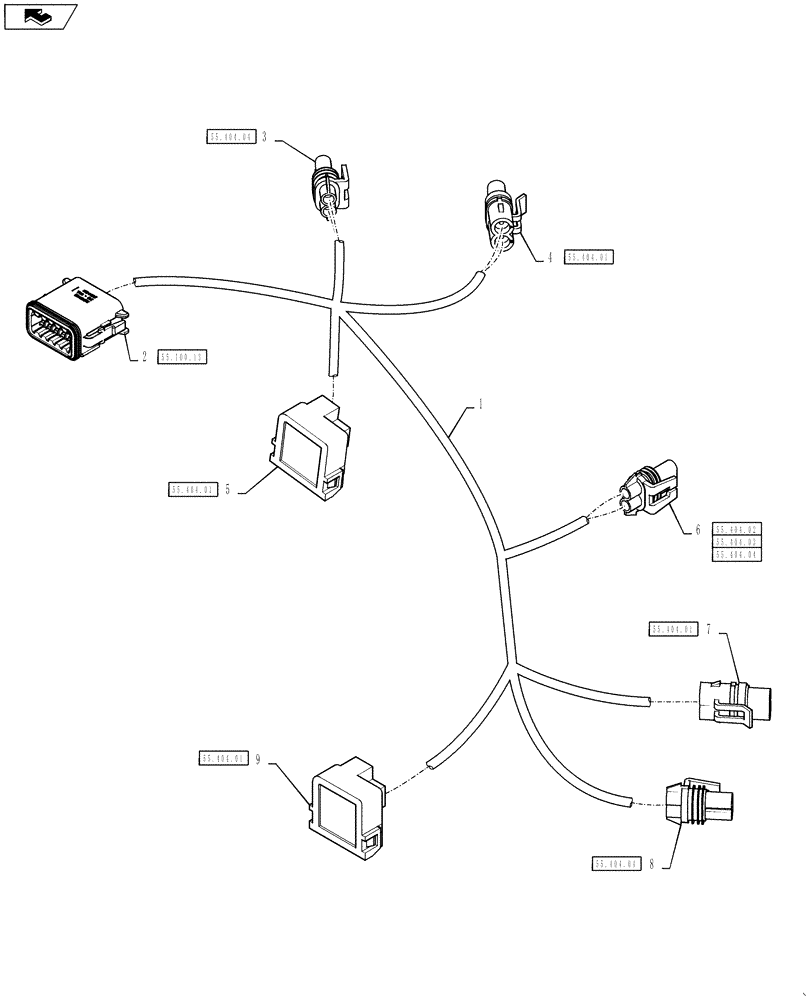

Запчасти Case IH 4430 (55.100.12) - FRONT HOOD LIGHTS HARNESS (55) - ELECTRICAL SYSTEMS

1

84488931

WIRE HARNESS

Front Hood Head Lights

1шт.

2

87696075

ELEC CONNECTOR

Frame Harness Interface, C640F

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Frame Harness Interface, C640F

9шт.

84068583

PLUG,12 - 16 Ga, White

Frame Harness Interface, C640F

3шт.

3

294250A1

CONNECTOR, ELEC

CONNECTOR LH HID Worklight, C624F

1шт.

87686740

RETAINER

Wedge, LH HID Worklight, C624F

1шт.

87680656

CONTACT

Terminal, LH HID Worklight, C624F

2шт.

4

198435A1

CONNECTOR, ELEC

CONNECTOR LH Worklight, C623F

1шт.

198436A1

CONNECTOR, ELEC

CONNECTOR Lock, LH Worklight, C623F

1шт.

87680656

CONTACT

Terminal, LH Worklight, C623F

2шт.

5

198222A1

CONNECTOR, ELEC

CONNECTOR LH Headlight, C622F

1шт.

221392A1

TERMINAL CONNECTOR

Terminal, LH Headlight, C622F

3шт.

6

294250A1

CONNECTOR, ELEC

CONNECTOR Center Worklight, C621F

1шт.

87686740

RETAINER

Wedge, Center Worklight, C621F

1шт.

87680656

CONTACT

Terminal, Center Worklight, C621F

2шт.

7

198435A1

CONNECTOR, ELEC

CONNECTOR RH Worklight, C619F

1шт.

198436A1

CONNECTOR, ELEC

CONNECTOR Lock, RH Worklight, C619F

1шт.

87680656

CONTACT

Terminal, RH Worklight, C619F

2шт.

8

294250A1

CONNECTOR, ELEC

CONNECTOR RH HID Worklight, C618F

1шт.

87686740

RETAINER

Wedge, RH HID Worklight, C618F

1шт.

87680656

CONTACT

Terminal, RH HID Worklight, C618F

2шт.

9

198222A1

CONNECTOR, ELEC

CONNECTOR RH Headlight, C620F

1шт.

221392A1

TERMINAL CONNECTOR

Terminal, RH Headlight, C620F

3шт.
