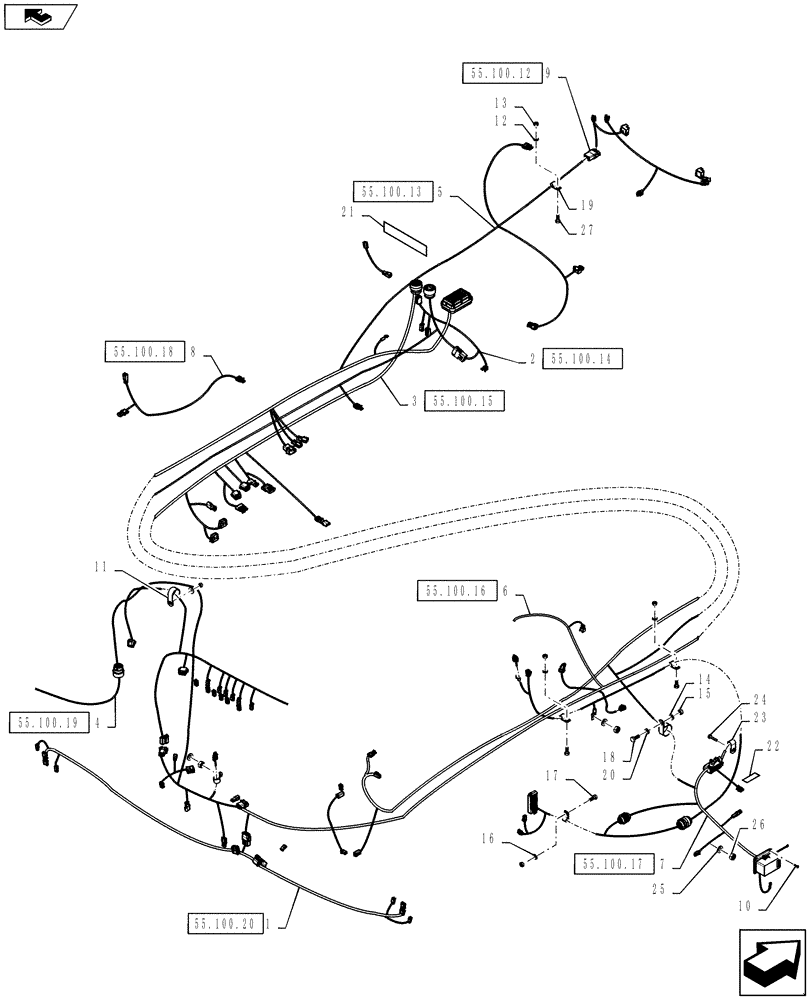

Запчасти Case IH 4430 (55.100.11) - MAIN HARNESS LAYOUT (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
84281618
HARNESS
Rear Lights
1шт.
See Fig 55.100.20 For Service Parts Breakdown
1шт.
2
84397004
HARNESS
Product Control
1шт.
See Fig 55.100.14 For Service Parts Breakdown
1шт.
3
84281620
HARNESS
Hydraulic Control, Frame
1шт.
See Fig 55.100.15 For Service Parts Breakdown
1шт.
4
84281621
HARNESS
Hydraulic Control, Boom Center Section
1шт.
See Fig 55.100.19 For Service Parts Breakdown
1шт.
5
84488932
WIRE HARNESS
Frame
1шт.
See Fig 55.100.13 For Service Parts Breakdown
1шт.
6
84396993
HARNESS
FPT Engine, 9 Liter
1шт.
See Fig 55.100.16 For Service Parts Breakdown
1шт.
7
84488933
WIRE HARNESS
T4 Engine, Denox
1шт.
See Fig 55.100.17 For Service Parts Breakdown
1шт.
8
84281649
HARNESS
Boom Lights
1шт.
See Fig 55.100.18 For Service Parts Breakdown
1шт.
9
84488931
WIRE HARNESS
Hood Lights
1шт.
See Fig 55.100.12 For Service Parts Breakdown
1шт.
10
87343600
SCREW,Phil Pan Hd, M5 x 16mm, Cl 4.8, Full Thd
4шт.
11
87307884
CLAMP,27mm, Coat, 8.7mm Bolt Hole, P Type
27.0mm
2шт.
12
87529302
WASHER,6.6mm ID x 18mm OD x 1.6mm Thk
6.6 x 18 x 1.6 mm, CST, DOR
6шт.
13
86980513
NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR
6шт.
14
87016869
CLAMP,31.7mm, Coat, 8.7mm Bolt Hole, P Type
2шт.
17
86980378
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
1шт.
18
86980379
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
2шт.
19
86050346
CLAMP,9.5mm, Coat, 7.1mm Bolt Hole, P Type
6шт.
20
84365547
WASHER,8.4mm ID x 16mm OD x 2mm Thk
2шт.
21
84318554
DECAL
Bulkhead Layout
1шт.
22
84371135
DECAL
Denox, Fuse and Relay
1шт.
23
9706748
CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type
1шт.
24
614-6025
BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd
1шт.
25
86511323
WASHER,10.5mm ID x 20mm OD x 2mm Thk
4шт.
27
86980360
BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd
3шт.
Выбрано товаров: 36
