Запчасти Case IH 4430 (55.100.06[02]) - CAB LH COMPARTMENT HARNESS, SN YCT032413 AND AFTER (55) - ELECTRICAL SYSTEMS

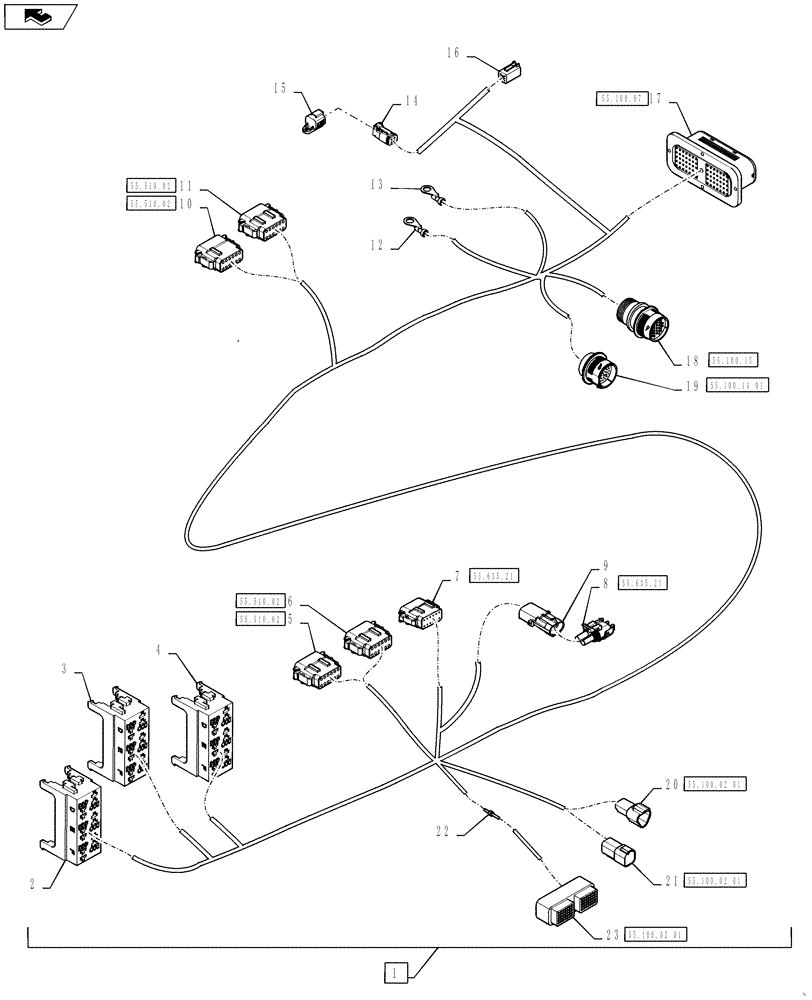

Схема запчастей Case IH 4430 - (55.100.06[02]) - CAB LH COMPARTMENT HARNESS, SN YCT032413 AND AFTER (55) - ELECTRICAL SYSTEMS
home
3
19
14
55.100.15
55.510.02
55.510.02
55.100.07
55.635.21
55.635.21
55.510.02
55.510.02
22
18
8
15
5
20
12
9
11
16
21
2
17
10
23
1
6
7
4
55.100.02 01
55.100.02 01
55.100.02 01
55.100.14 01
13

Артикул

Название

Примечание

Количество

1

84469092

WIRE HARNESS

Cab Interface/Bulkhead, INCL Ref 2 - 23

1шт.

2

87705041

MULTIPOLE CONNECTOR,Female, 30 Pole

Relay Panel 6

1шт.

2

87704921

LOCK

Relay Panel 6

1шт.

2

182135A1

TERMINAL CONNECTOR

Terminal, Relay Panel 6

3шт.

2

182128A1

CONNECTOR, ELEC

CONNECTOR Terminal, Relay Panel 6

1шт.

2

86509590

RELAY

20 Amp, Relay Panel 6

1шт.

3

87705041

MULTIPOLE CONNECTOR,Female, 30 Pole

Relay Panel 5

1шт.

3

87704921

LOCK

Relay Panel 5

1шт.

3

182135A1

TERMINAL CONNECTOR

Terminal, Relay Panel 5

16шт.

3

182128A1

CONNECTOR, ELEC

CONNECTOR Terminal, Relay Panel 5

9шт.

3

86509590

RELAY

20 Amp, Relay Panel 5

6шт.

4

87705041

MULTIPOLE CONNECTOR,Female, 30 Pole

Relay Panel 4

1шт.

4

87704921

LOCK

Relay Panel 4

1шт.

4

182135A1

TERMINAL CONNECTOR

Terminal, Relay Panel 4

17шт.

4

182128A1

CONNECTOR, ELEC

CONNECTOR Terminal, Relay Panel 4

8шт.

4

86509590

RELAY

20 Amp, Relay Panel 4

6шт.

5

87705101

MULTIPOLE CONNECTOR,Female, 12 Pole

Propel Node B, X-206F

1шт.

5

87705198

WEDGE

Propel Node B, X-206F

1шт.

5

225039C1

TERMINAL

Propel Node B, X-206F

7шт.

6

87700156

CONTACT HOUSING,Female, 12 Pole

Propel Node A, X-205F

1шт.

6

87705198

WEDGE

Propel Node A, X-205F

1шт.

6

223953A1

SOCKET/RECEPTACLE

Propel Node A, X-205F

2шт.

6

225039C1

TERMINAL

Propel Node A, X-205F

7шт.

7

87700156

CONTACT HOUSING,Female, 12 Pole

Foam Marker, C204F

1шт.

7

87705198

WEDGE

Foam Marker, C204F

1шт.

7

225039C1

TERMINAL

Foam Marker, C204F

9шт.

8

87692855

CONTACT HOUSING,Male, 2 Cavities

Foam Advance, C202F

1шт.

8

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

Foam Advance, C202F

2шт.

9

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Foam Advance Jumper, C202M

1шт.

9

225119C1

TERMINAL

Foam Advance Jumper, C202M

2шт.

10

87705101

MULTIPOLE CONNECTOR,Female, 12 Pole

Speed Node Keying B, C251F

1шт.

10

87705198

WEDGE

Speed Node Keying B, C251F

1шт.

10

223953A1

SOCKET/RECEPTACLE

Speed Node Keying B, C251F

2шт.

10

225039C1

TERMINAL

Speed Node Keying B, C251F

3шт.

11

87700156

CONTACT HOUSING,Female, 12 Pole

Speed Node Keying A, C249F

1шт.

11

87705198

WEDGE

Speed Node Keying A, C249F

1шт.

11

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Speed Node Keying A, C249F

1шт.

11

225039C1

TERMINAL

Speed Node Keying A, C249F

10шт.

12

84279551

ELEC CONNECTOR,1.00 - 2.50mm

M12 Stud, CG3

1шт.

13

84140737

TERMINAL CONNECTOR

Chassis Ground, G1 - CM

1шт.

14

87694153

CONTACT HOUSING,Female, 4 Cavities

Product CAN, X-211F

1шт.

14

84074640

LOCKING TAB,Wedge Lock

Wedge Locking, Product CAN, X-211F

1шт.

14

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Product CAN, X-211F

2шт.

14

225365C1

SOCKET

Product CAN, X-211F

2шт.

15

84391166

WIRE CONNECTOR,Male, 4 Pins

Cap For Product CAN, X-211F

1шт.

16

76074075

ELEC CONNECTOR

Power Ground Port, X-200M

1шт.

16

87694149

ELEC CONNECTOR

Power Ground Port, X-200M

1шт.

16

87692882

ELEC. TERMINAL PIN

Power Ground Port, X-200M

4шт.

17

87707114

CONTACT HOUSING,Male, 70 Pole

RH Console Interface, C128M

1шт.

17

225241C1

SOCKET

RH Console Interface, C128M

56шт.

18

87716941

MULTIPOLE CONNECTOR,Male, 31 Pole

Hydraulic Bulkhead, CM4M

1шт.

18

87271930

NUT

Hydraulic Bulkhead, CM4M

1шт.

18

225241C1

SOCKET

Hydraulic Bulkhead, CM4M

23шт.

18

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Hydraulic Bulkhead, CM4M

1шт.

19

87700815

MULTIPOLE CONNECTOR,Male, 35 Pole

Product Bulkhead, CM5M

1шт.

19

87271930

NUT

Product Bulkhead, CM5M

1шт.

19

225039C1

TERMINAL

Product Bulkhead, CM5M

16шт.

19

87695915

ELEC. TERMINAL PIN,Male, Nickel, 1 - 2 mm

Product Bulkhead, CM5M

1шт.

19

223951A1

PIN

Product Bulkhead, CM5M

4шт.

20

87695723

ELEC CONNECTOR,Male , 3 Pole

Trans. Interface, C079M

1шт.

20

87695652

PLUG,12 - 16 Ga, White

Wedge, Trans. Interface, C079M

1шт.

20

225365C1

SOCKET

Trans. Interface, C079M

2шт.

21

87694152

CONTACT HOUSING,Male, 6 Pole

Trans. Interface, C097M

1шт.

21

87694147

WEDGE,Locking, Green

Trans. Interface, C097M

1шт.

21

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Trans. Interface, C097M

2шт.

22

BN16174

DIODE,600V, 3A

3A, 600V

1шт.

23

87707115

CONTACT HOUSING,Female, 70 Pole

Cab Interface, C080F

1шт.

23

87695915

ELEC. TERMINAL PIN,Male, Nickel, 1 - 2 mm

Cab Interface, C080F

30шт.

23

225365C1

SOCKET

Cab Interface, C080F

4шт.

Выбрано товаров: 69
