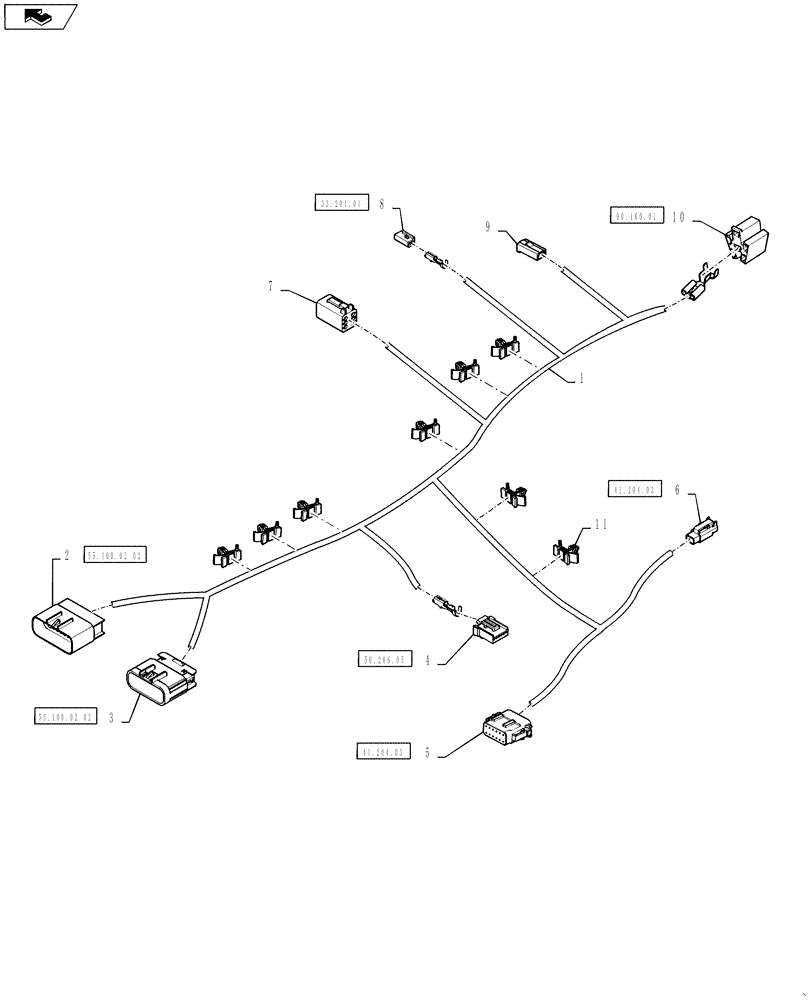

Запчасти Case IH 4430 (55.100.03) - FRONT DASH HARNESS (55) - ELECTRICAL SYSTEMS

1

84142982

WIRE HARNESS

Front Dash Harness

1шт.

2

388708A1

CONNECTOR, ELEC

CONNECTOR Front Dash 1, C053M

1шт.

388686A1

CONNECTOR, ELEC

CONNECTOR Terminal, Front Dash 1, C053M

8шт.

3

87698288

ELEC CONNECTOR

Front Dash 2, C054M

1шт.

388686A1

CONNECTOR, ELEC

CONNECTOR Terminal, Front Dash 2, C054M

9шт.

4

198722A1

CONNECTOR, ELEC

CONNECTOR Vent Motor, C088F

1шт.

222486A1

CONTACT

Terminal, Vent Motor, C088F

3шт.

5

87700156

CONTACT HOUSING,Female, 12 Pole

Turn Signal Pod, C091M

1шт.

87705198

WEDGE

Turn Signal Pod, C091M

1шт.

225039C1

TERMINAL

Terminal, Turn Signal Pod, C091M

7шт.

6

222135A1

CONNECTOR, ELEC

CONNECTOR Steering Rotation, C092M

1шт.

222846A1

STOP LOCK

Steering Rotation, C092M

1шт.

225039C1

TERMINAL

Terminal, Steering Rotation, C092M

2шт.

7

87694112

ELEC CONNECTOR,Female, 6 Pole

TPS, C093M

1шт.

87694150

LOCKING TAB,Wedge Lock

TPS, C093M

1шт.

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

Terminal, TPS, C093M

5шт.

381418A1

SOCKET

Terminal, TPS, C093M

1шт.

8

227429A1

CONNECTOR, ELEC

CONNECTOR Brake Switch, C076F

1шт.

87705061

RETAINER

Brake Switch, C076F

1шт.

84199545

TERMINAL

Terminal, Brake Switch, C076F

2шт.

9

784374

BODY

Ground, C094F

1шт.

87709400

ELEC. TERMINAL PIN

Terminal, Ground, C094F

1шт.

10

87693713

ELEC CONNECTOR,Female, 6 Cavities

CONNECTOR Ingnition Switch, C095F

1шт.

739064C1

CONNECTION,ELECTRIC

Terminal, Ingnition Switch, C095F

4шт.

11

392699A1

FASTENER

Harness Tie Down Clip

9шт.
