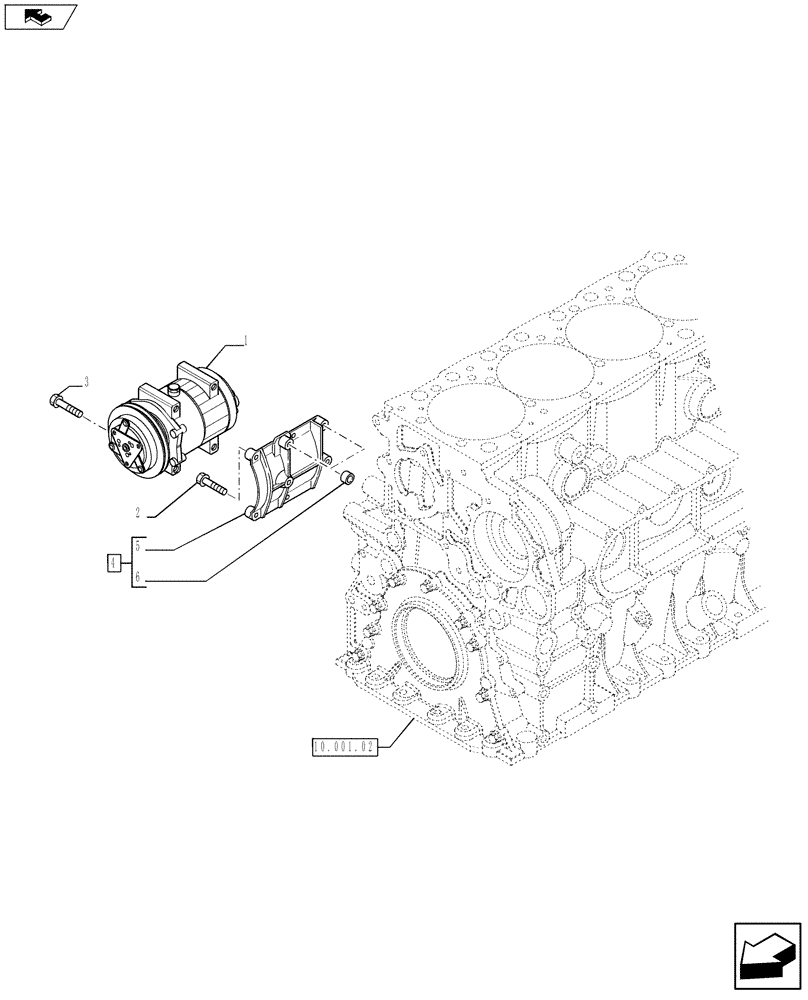

Запчасти Case IH 4430 (50.200.01) - AIR CONDITIONING COMPRESSOR (504367657) (50) - CAB CLIMATE CONTROL

1

86993463

AIRCOND. COMPRESSOR

1шт.

1

86993463GV

AIRCOND. COMPRESSOR

Value

1шт.

1

86993463R

REMAN-A/C COMPRESSOR

Reman for New PN 86993463

1шт.

1

86993463C

CORE-A/C COMPRESSOR

Return Number

1шт.

2

16598225

BOLT,Flng, M8 x 90mm

M8 x 90

4шт.

3

16588825

BOLT,M12 x 70mm

M12 - 1.25 x 70mm

2шт.

3

16592825

SCREW,Hex, M10 x 70mm, Cl 8.8

2шт.

4

504354695

BRACKET

Air Conditioning Compressor Assembly

1шт.

5

504354470

SUPPORT

Air Conditioning Compressor Bracket

1шт.

6

504277279

PIN

2шт.

7

245481C1

CONNECTION,ELECTRIC

A/C Clutch, C814F, Not Shown

1шт.

8

225119C1

TERMINAL

A/C Clutch, C814F, Not Shown

2шт.

9

84292913

BELT,2203.00 mm L

Alternator, A/C Compressor, Not Shown

1шт.
