(48.110.02) - SUSPENSION SHOCK ASSEMBLY, FRONT AND REAR NON-ACTIVE SUSPENSION AND REAR ACTIVE SUSPENSION

Запчасти Case IH 4430 (48.110.02) - SUSPENSION SHOCK ASSEMBLY, FRONT AND REAR NON-ACTIVE SUSPENSION AND REAR ACTIVE SUSPENSION (48) - TRACKS & TRACK SUSPENSION

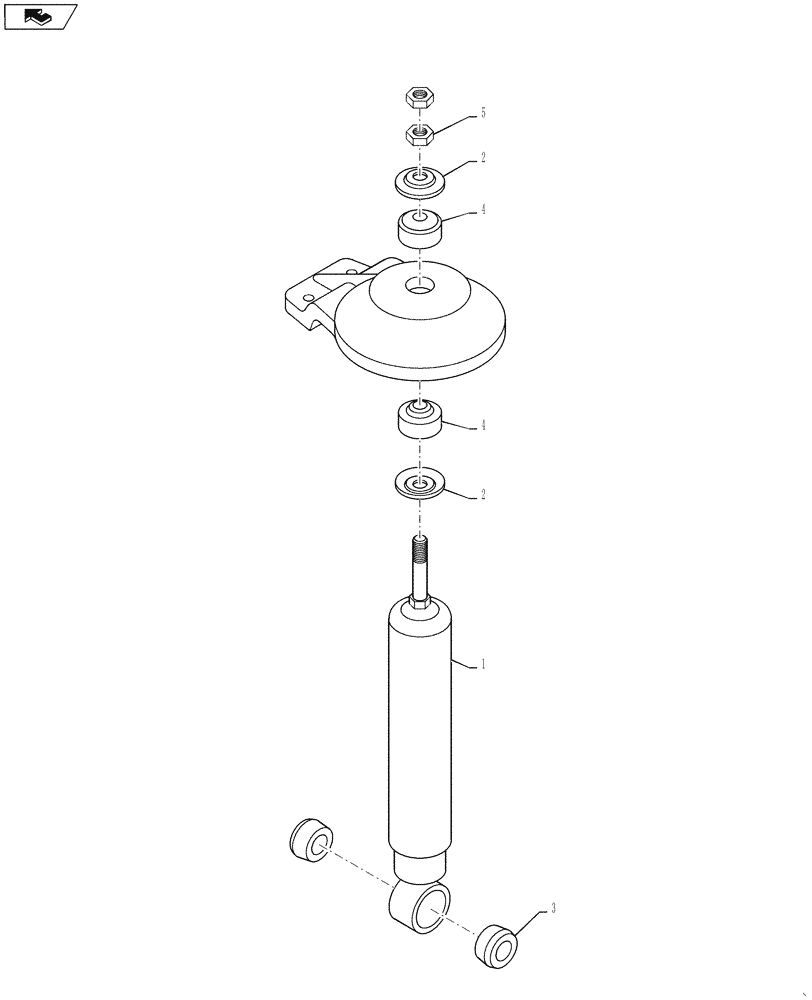

Схема запчастей Case IH 4430 - (48.110.02) - SUSPENSION SHOCK ASSEMBLY, FRONT AND REAR NON-ACTIVE SUSPENSION AND REAR ACTIVE SUSPENSION (48) - TRACKS & TRACK SUSPENSION
5
2
home
1
4
3
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

343351A1

SHOCK ABSORBER

Suspension

1шт.

2

BN313440

WASHER

Retainer

2шт.

3

BN313441

BUSHING,25.2mm ID x 47.63mm OD x 25.32mm L

Rod End, Shock Absorber

2шт.

4

BN324082

BUSHING

Threaded End, Shock Absorber

2шт.

5

87564738

JAM NUT

5/8-18, Gr 8

2шт.

Выбрано товаров: 5
