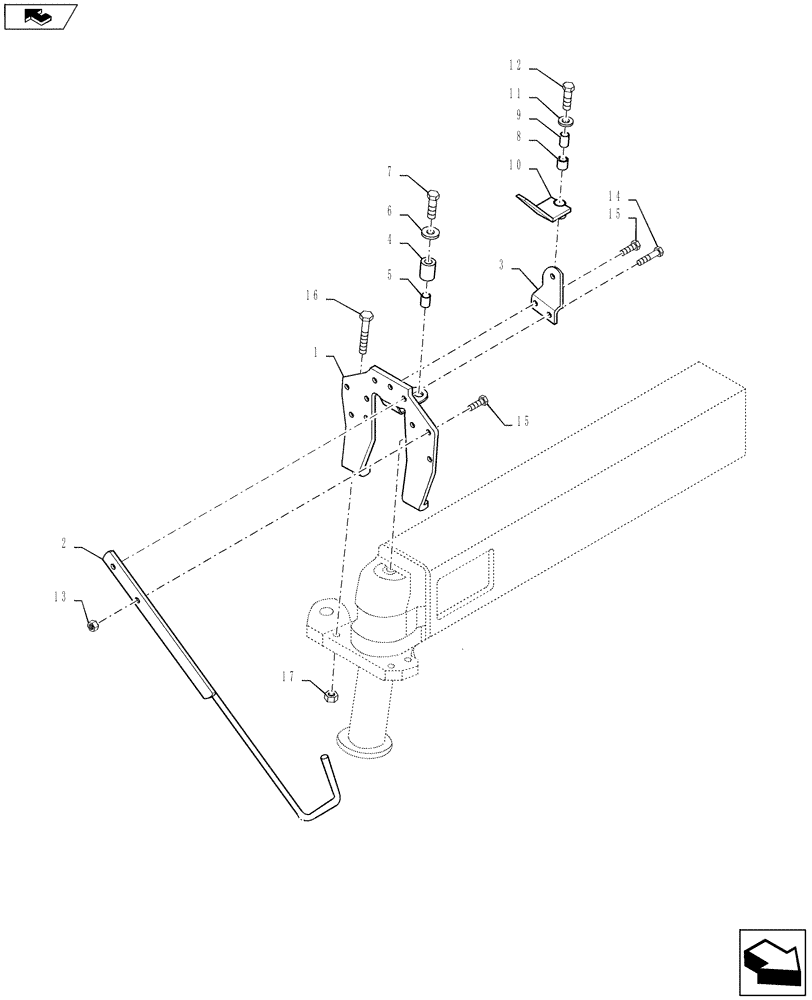

Запчасти Case IH 4430 (44.101.02) - FRONT HOSE PIVOT ASSEMBLY (44) - WHEELS

1

87266807

MOUNTING PLATE

Hose Pivot

1шт.

2

BN325088

STOP

Hose

1шт.

3

BN321286

BRACKET

Right Front Hose Support

1шт.

3

BN321283

BRACKET

Left Front Hose Support, Not Shown

1шт.

4

87376798

BUSHING

Hose Pivot

1шт.

5

87266809

SPACER,21.2mm ID x 25.4mm OD x 28mm L

1шт.

6

87310608

WASHER,22mm ID x 44mm OD x 5mm Thk

22 x 44 x 5 mm, HDN, DOR

1шт.

7

86980460

BOLT,Hex, M20 x 60mm, Cl 8.8

M20 - 2.5 X 60, HH, 8.8 DOR

1шт.

8

BN313618

BUSHING,16.15mm ID x 26.42mm OD x 35.05mm L

UHMW

1шт.

9

BN313619

BUSHING,12.7mm ID x 16mm OD x 38.1mm L

Tube

1шт.

10

BN323697

SUPPORT

Hose Support, RH

1шт.

10

BN323696

SUPPORT

Hose Support, LH, Not Shown

1шт.

11

87528989

WASHER,12.2mm ID x 30mm OD x 2.5mm Thk

M12 x 30 x 2.5 DOR

1шт.

12

86980427

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

13

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

4шт.

14

86980425

BOLT,Hex, M12 - 1.75 x 50mm, Cl 8.8, DOR

M12 - 1.75 x 50, 8.8, DOR

1шт.

15

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

16

87341829

BOLT,Hex, M16 x 65mm, Cl 8.8

M16 X 65 8.8 DOR

2шт.

17

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.
