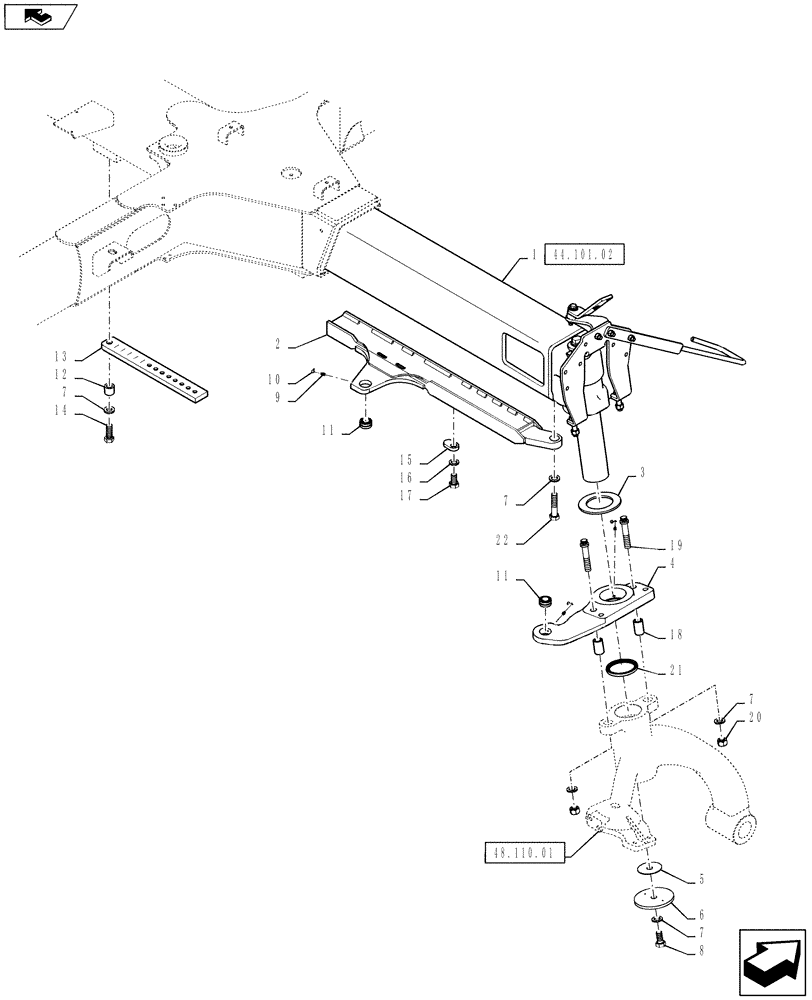

Запчасти Case IH 4430 (44.101.01) - FRONT AXLE ASSEMBLY (44) - WHEELS

1

87721676

AXLE

Front

1шт.

2

87265738

SLIDE

Axle Adjust, Right Front

1шт.

2

87265739

SLIDE

Axle Adjust, Left Front, Not Shown

1шт.

3

86986933

THRUST WASHER,95mm ID x 149mm OD x 6.26mm Thk

1шт.

4

86986935

STEERING ARM

Steering, RH

1шт.

4

86986934

STEERING ARM

Steering, LH, Not Shown

1шт.

5

BN312604

SPACER

Axle Shim

1шт.

6

BN302052

WASHER,20.32mm ID x 139.7mm OD

1шт.

7

87529307

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm, HDN, DOR

6шт.

8

87342019

BOLT,Hex, M20 x 2.5 x 40mm, Class 10.9, Full Thd, DOR

1шт.

9

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE Grease, 8 mm X 1 STR

3шт.

10

BN69951

CAP

Grease

3шт.

11

1316827C1

BUSHING,25.4mm ID x 41.27mm OD x 22.23mm W

Self Aligning

2шт.

12

BN301998

DOWEL

Hollow

1шт.

13

87540210

SLIDE

Axle Slide

1шт.

14

87342045

BOLT,Hex, M20 x 2.5 x 55, Class 10.9, DOR

1шт.

15

BN320759

STOP

Axle Adjust Slide

1шт.

16

9847025

LOCK WASHER,21.2mm ID x 33.6mm OD x 6mm Thk

1шт.

17

87635862

BOLT,Hex, M20 x 35mm, Cl 10.9

M20 x 35, Full Thrd, 10.9 DOR

1шт.

18

342939A1

SLEEVE

Hollow

2шт.

19

87268646

BOLT,M20 x 2.5 x 100mm, Cl 12.9

M20 - 2.5 X 100, 12PT, 12.9, DRL

2шт.

20

87024336

NUT,M20 x 2.5, Cl 10

2шт.

21

343883A1

SEAL,90mm ID x 110mm OD x 8mm Thk

1шт.

22

87342001

BOLT,Hex, M20 x 90, Class 10.9, DOR

2шт.
