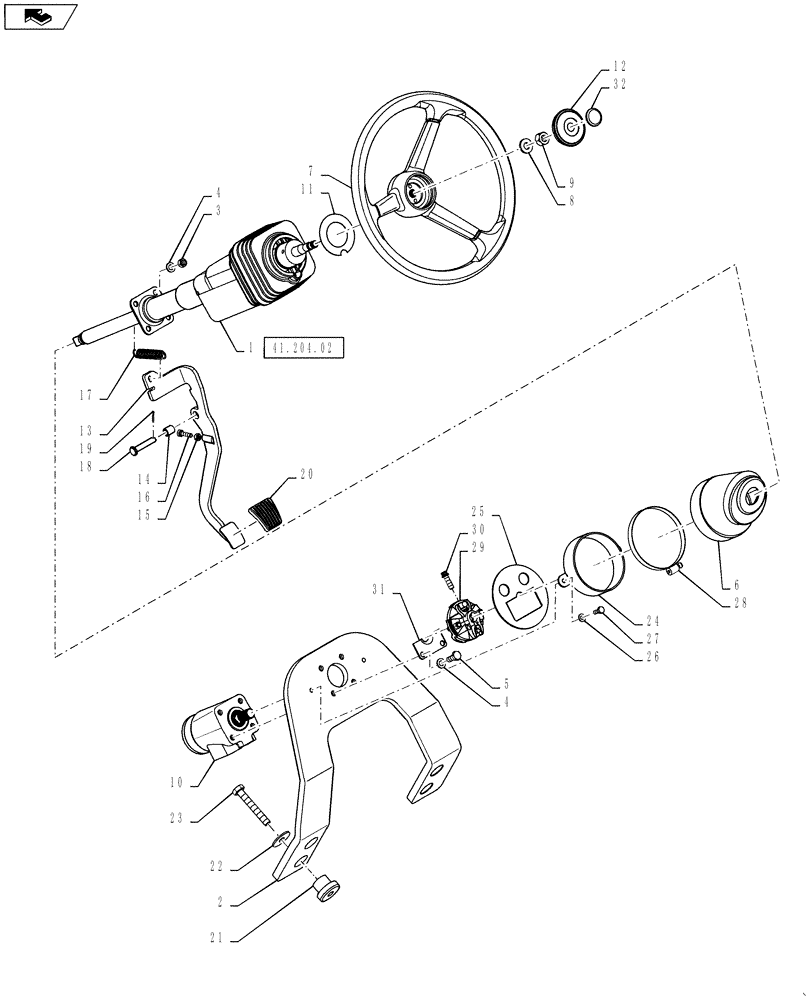

Запчасти Case IH 4430 (41.204.01) - STEERING CONTROL, DELUXE AND LUXURY (41) - STEERING

1

86983411

STEERING COLUMN

Assembly, Adjustable

1шт.

2

343214A1

PLATE

PUMP SUPPORT

1шт.

3

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

6

373193A1

BOOT

STEERING

1шт.

7

301200A1

STEERING WHEEL

Deluxe

1шт.

7

359033A1

STEERING WHEEL

Luxury, Leather

1шт.

8

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

9

825-11414

NUT,M14 x 1.5, Cl 8

1шт.

10

87267311

PUMP

Steering, Series 10, 11.3 D

1шт.

11

1977448C2

WASHER

Support, Boot

1шт.

12

361024A3

CAP

Steering Wheel Assembly With Insert

1шт.

13

311748A3

PEDAL

Steering Adjust

1шт.

14

282892A1

BUSHING,8mm ID x 9.6mm OD x 8mm L

Nylon Bushing

2шт.

15

829-1508

NUT,M8, Cl 10

1шт.

16

514-633

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

17

311812A1

SPRING

Extension

1шт.

18

729-845

CLEVIS PIN,M8 x 45

1шт.

19

733-2012

COTTER PIN,M2 x 12

1шт.

20

323657A1

PAD

Foot Release Pedal

1шт.

21

A59514

RUBBER BUSHING,13.49mm ID x 34.29mm OD x 41.1mm L

Mount, Front

4шт.

22

495-81145

WASHER,13/32" x 1 3/4" x .120"

4шт.

23

627-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9, Full Thd

4шт.

24

373194A1

HOUSING

Boot Mounting

1шт.

25

86983451

SEAL

Closed Cell Foam

1шт.

26

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

27

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

28

214-1580

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm, W/ Liner

1шт.

29

L100096

ISOLATOR

Bushing, Steering Noise

1шт.

30

CAS7807271

SCREW

Cap Lock, 12 Pt

2шт.

31

450945A1

STOP DEVICE

Steering Pump Shaft

1шт.

32

87613502

INSERT

CASE IH

1шт.
