Запчасти Case IH 4430 (40.914.03) - BOOM PLUMBING STRAINER, 1" NPT, 50 MESH, POLY (40 ) - PLUMBING

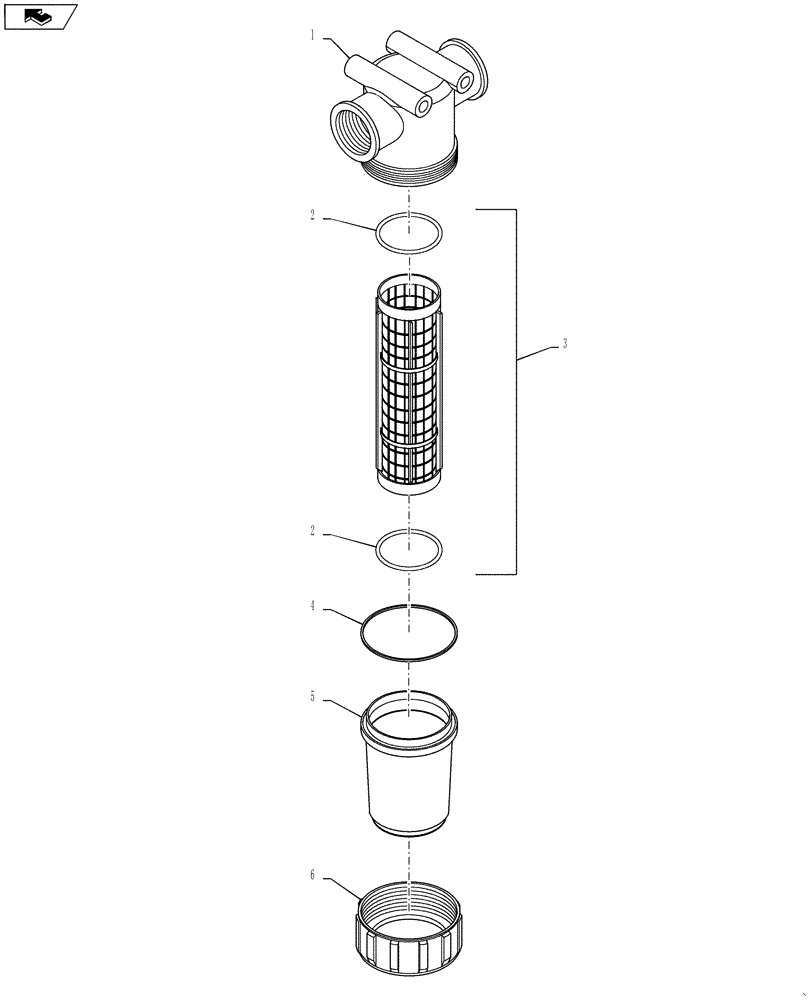

Схема запчастей Case IH 4430 - (40.914.03) - BOOM PLUMBING STRAINER, 1" NPT, 50 MESH, POLY (40 ) - PLUMBING
3
4
home
2
6
5
2
1

Артикул

Название

Примечание

Количество

0

BN320072

FILTER STRAINER

1" NPT 50 Mesh, Poly

1шт.

1

87270124

HEAD

Strainer

1шт.

2

87270125

GASKET

Strainer Gasket

2шт.

3

87270126

SCREEN,1", 50 Mesh

50 Mesh

1шт.

4

87270127

GASKET

Strainer Body

1шт.

5

87270128

BODY

Strainer

1шт.

6

87270129

NUT

Strainer

1шт.

7

87272055

FILTER,80 Mesh

80 Mesh, Stainless Steel, Optional, Not Shown, Used When Aim Command Is Installed, 5 Are Required For 5 Section Booms, 6 Are Required For 6 Section Booms, And 1 Is Required For 7 Section Booms

1шт.

Выбрано товаров: 8
