(40.912.04) - REAR PRODUCT TANK PLUMBING, RINSE

Запчасти Case IH 4430 (40.912.04) - REAR PRODUCT TANK PLUMBING, RINSE (40 ) - PLUMBING

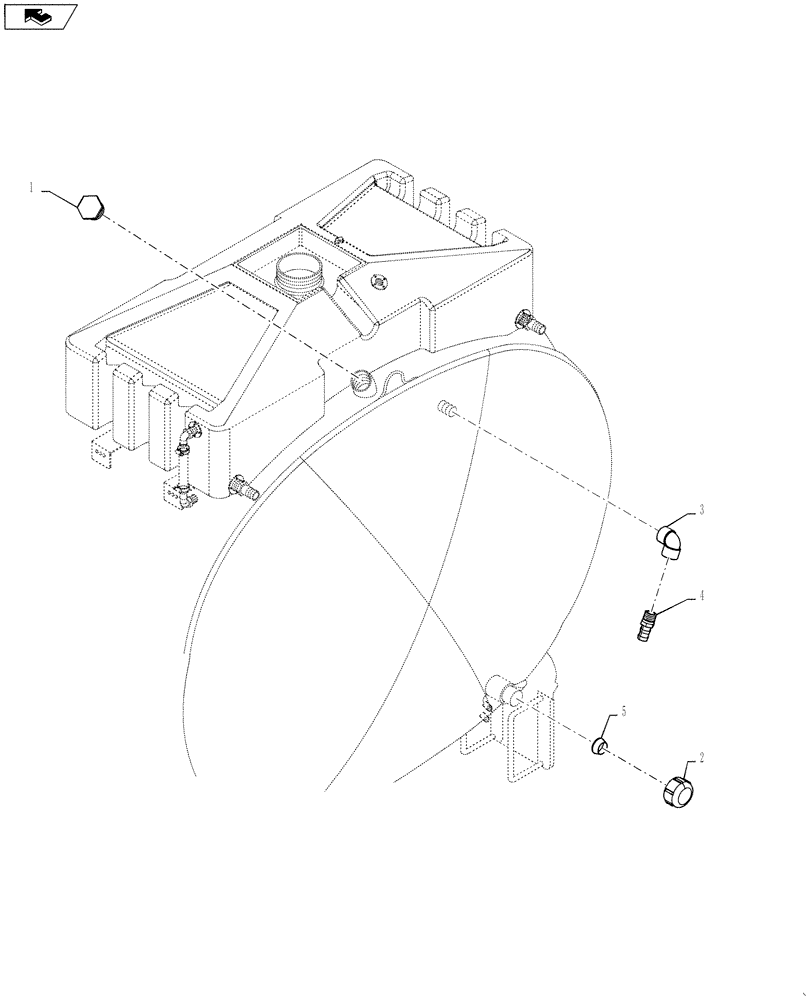

Схема запчастей Case IH 4430 - (40.912.04) - REAR PRODUCT TANK PLUMBING, RINSE (40 ) - PLUMBING
4
3
home
2
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN73794

PLUG,2" Male NPT, Poly

2" Poly Pipe

1шт.

2

BN2293320

CAP

2" Poly, Product Tank Clean Out Drain

1шт.

3

BN73742

ELBOW

1" FPT, Poly

1шт.

4

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

5

87272500

GASKET

2" Sparge Tube

1шт.
