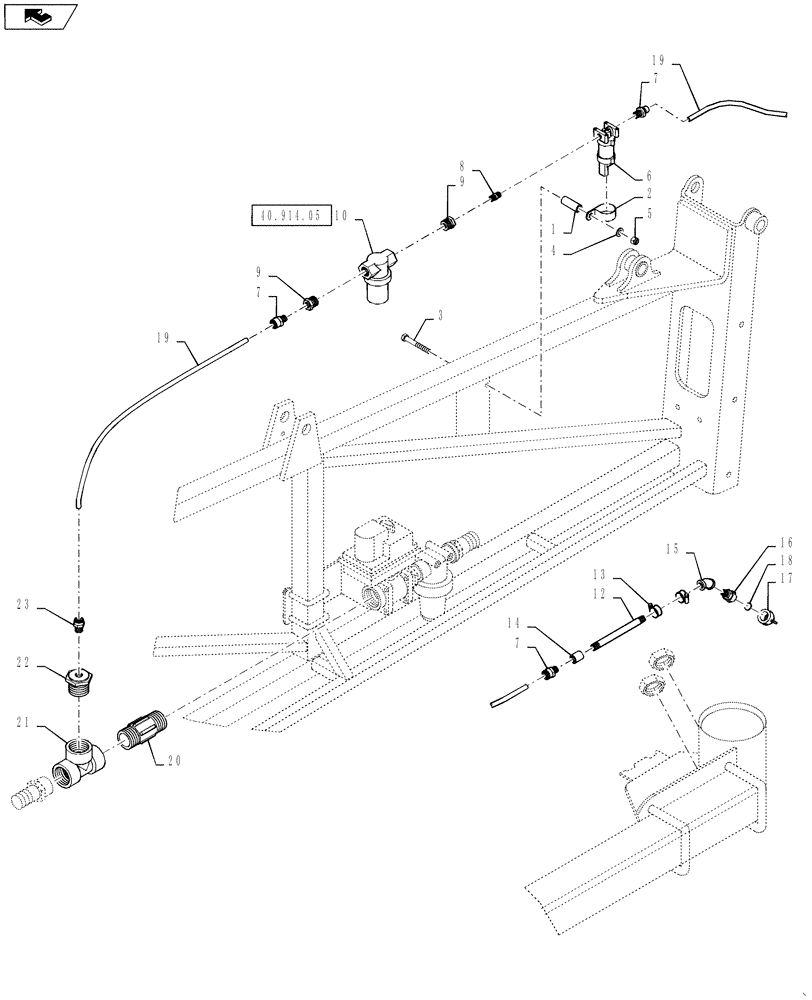

Запчасти Case IH 4430 (40.910.59) - FENCE ROW, STANDARD FLOW, 90/100 BOOM (40 ) - PLUMBING

1

BN300892

TUBE

Spacer, 3/8 Bolt

2шт.

2

515-23365

CLAMP,1 7/16", Insul, 3/8" Bolt

2шт.

3

BN50272

BOLT

3/8-16 X 2.75, Stainless Steel

2шт.

4

BN50146

WASHER,3/8", Stainless

2шт.

5

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

6

343778A1

SOLENOID

Valve, 1/4" NPT

2шт.

7

BN2399403

ADAPTER

1/4" MPT x 3/8" OD Tube, Push Lock Fitting

6шт.

8

86986808

NIPPLE

1/4" Short, Poly

2шт.

9

BN304521

REDUCER

1/2 x 1/4 Red, Poly

4шт.

10

87565152

FILTER STRAINER,1/2"x 1/2"Clear Bowl Strainer w/50 Mesh Screen

Mini Strainer, 1/2" NPT, 50 Mesh, Poly

2шт.

See Fig 40.914.05 For Service Parts Breakdown

1шт.

11

BN321911

SWITCH

Rocker, Fence Row, Not Shown

1шт.

12

BN313361

NIPPLE,1/4" NPT x 6mm SS

NIPPLE

2шт.

13

BN324022

HOSE CLAMP

#8, Stainless Steel

4шт.

14

BN73015

COUPLING

1/4" NPT, Full, Stainless Steel

2шт.

15

84235806

PIPE FITTING

45 Deg, 1/4" FPT x 1/4" FPT, Stainless Steel

2шт.

16

84223253

ADAPTER

1/4" MPT x Quick TeeJet Nozzle, Poly

2шт.

17

BN74619

CAP

With Gasket

2шт.

18

BN69558

PLUG

Spray Tip, Stainless Steel

2шт.

19

84422568

TUBE,3/8" X 50' BULK, SAE J844, BLACK

Air, Synflex 3/8" Black, Bulk

53.5шт.

20

BN323762

NIPPLE

1.25 x 4", Poly

2шт.

21

BN73662

TEE

1-1/4", Poly

2шт.

22

BN320968

BUSHING,1-1/4" MPT x 3/8" FPT Reducing Bushing

1.25 X .375, Poly

2шт.

23

BN2399412

ADAPTER

3/8" MPT x 3/8" OD Tube, Push Lock Fitting

2шт.
