(40.910.57) - SPRAYBAR, CENTER AND INNER SECTION, 20" NOZZLE SPACING, OFF CENTER, 7 SECTION, LO-FLOW, 120 BOOM

Запчасти Case IH 4430 (40.910.57) - SPRAYBAR, CENTER AND INNER SECTION, 20" NOZZLE SPACING, OFF CENTER, 7 SECTION, LO-FLOW, 120 BOOM (40 ) - PLUMBING

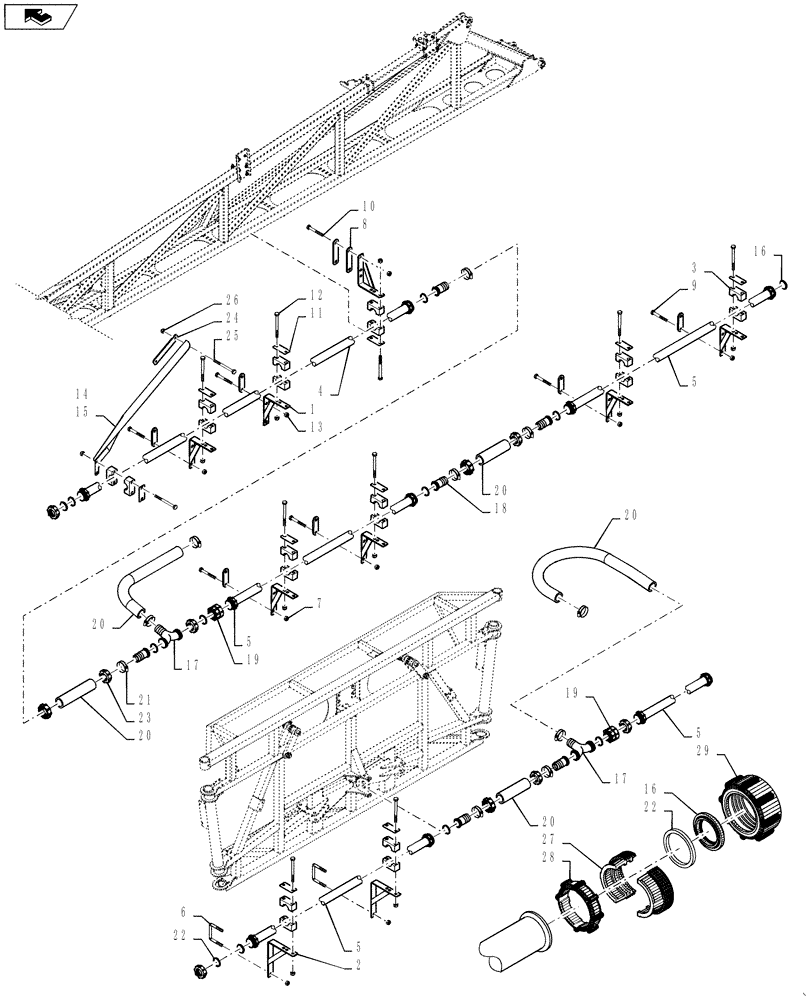

Схема запчастей Case IH 4430 - (40.910.57) - SPRAYBAR, CENTER AND INNER SECTION, 20" NOZZLE SPACING, OFF CENTER, 7 SECTION, LO-FLOW, 120 BOOM (40 ) - PLUMBING
13
7
20
20
5
28
18
16
20
8
3
20
12
1
29
5
21
6
22
14
5
15
9
11
17
17
2
23
20
22
27
24
4
16
26
5
19
25
19
home
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84490175

MOUNT

Spraybar

14шт.

2

84511418

MOUNT

Spraybar, Center Section

4шт.

3

BN67054

CLAMP

1.315" OD

20шт.

4

87671762

BOOM,106" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, 6 Nozzles, 20" Nozzle Spacing, 106" Long, Includes Ref 25 - 27

2шт.

5

87671764

BOOM,64-1/2" Long, 4 Holes, 20" Nozzle Spacing

Spraybar, 4 Nozzles, 20" Nozzle Spacing, 65" Long

6шт.

6

87586548

U-BOLT

Square, M10 x 64 mm id x 64

4шт.

7

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

36шт.

8

87484194

PLATE

Backer, Spraybar Mount

16шт.

9

86980410

BOLT,Hex, M10 x 100mm, Cl 8.8

M10 1.5 X 100, 8.8, DOR

24шт.

10

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

11

BN309483

PLATE

Clamp Top, Single Clamp

14шт.

12

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

40шт.

13

BN55359

LOCK NUT,1/4"-20, SS

36шт.

14

84542723

MOUNT

Spraybar, Extended, LH

1шт.

15

84542725

MOUNT

Spraybar, Extended, RH

1шт.

16

87630099

PLUG,1" SST

Flange Cap For Spraybar, Poly

6шт.

17

87630101

FITTING,Tee, PP

1-1/4" MPT x 1-1/4" MPT x 1-1/4 Hose Barb, Poly

3шт.

18

87630096

FITTING,QN Hose Shank - 1" SST X 1 1/4" Straight Shank

Straight, 1" Flange x 1-1/4" Hose Barb, Poly

10шт.

19

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

Coupling, Spraybar End x 1-1/4" Female NPT, With O-Ring Flange, Poly

5шт.

20

BN29563

HOSE

Bulk 1.25" EPDM, Discharge

11.5шт.

21

BN320156

HOSE CLAMP

#24, Stainless Steel

16шт.

22

84181302

SEALING RING

SEALRING Rectangular, 1 5/16" x 1 9/16" Class 5

22шт.

23

87638736

FITTING,QN 1" - Nut

Nut, Quick, 1-1/4" NPT, Poly

3шт.

24

87673096

STRAP

Backer, 4 1/2” Tube

2шт.

25

86980370

BOLT,Hex, M6 x 90mm, Cl 8.8

M6-1 X 90, 8.8, DOR

4шт.

26

353308

NUT,M6 x 1.0, Cl 8

4шт.

27

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve, Spraybar, Poly

2шт.

28

87630103

FITTING

Binding Ring, Spraybar, Poly

2шт.

29

87630105

NUT

Nut, Quick, Spraybar, Poly

2шт.

30

87630100

REDUCER FITTING,QN 1" SST x 3/4" NPT FE Adapter

1" Flange x 3/4" Female NPT, Poly, Additional Parts, Not Shown

1шт.

31

87630098

45 ELBOW,QN Hose Shank - 1" SST x 1 1/4" Sweep 45 Degree

1" Flange x 1-1/4" Hose Barb, Poly, Additional Parts, Not Shown

1шт.
