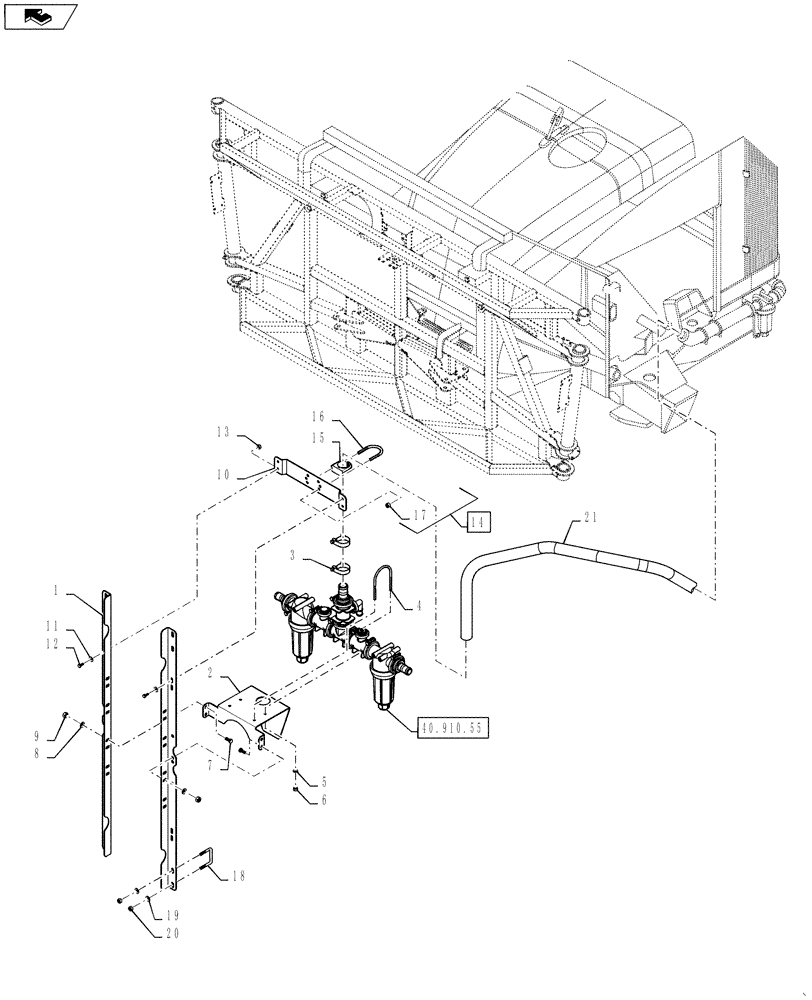

Запчасти Case IH 4430 (40.910.54) - CENTER SECTION PLUMBING, 7 SECTION, LO-FLOW, 120’ BOOM (40 ) - PLUMBING

1

84483224

MOUNT

Manifold, Center Section

2шт.

2

87663460

MOUNTING PLATE

Manifold, Lo-Flow

1шт.

3

BN53811

CLAMP

2" ID, T-bolt

4шт.

4

BN303201

U-BOLT

BOLT "U" 1/4 x 2.38R x 3.75

2шт.

5

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

0.281 X 0.625 X 0.065, HTS, DOR, HDN

4шт.

6

87343957

NUT,1/4" - 20

1/4"-20, GB, DOR

4шт.

7

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

8

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

9

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

10

BN325194

BRACKET, SUPPORTING

Clamp, Center Section

1шт.

11

BN50142

WASHER,5/16", Stainless Steel

4шт.

12

BN50476

BOLT,5/16"-18 x 0.75", Stainless

4шт.

13

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

14

343817A1

HOSE CLAMP

U-Bolt, 1-1/2" Pipe, Includes Ref 15 - 17

1шт.

15

343818A1

CLAMP

1 1/2" Pipe, Vinyl Insulated

1шт.

16

343819A1

U-BOLT

3/8"-16 x 2.42" id, 2.20" long

1шт.

17

87343970

NUT,3/8"-16, G8, DOR

2шт.

18

87586548

U-BOLT

Square, M10 x 64 mm id x 64

4шт.

19

BN50146

WASHER,3/8", Stainless

8шт.

20

87344003

NUT,M10-1.5, 10, DOR

8шт.

21

BN53621

HOSE,1.50" ID BULK

Suction, EPDM , Cut To Length of 156"

1шт.
