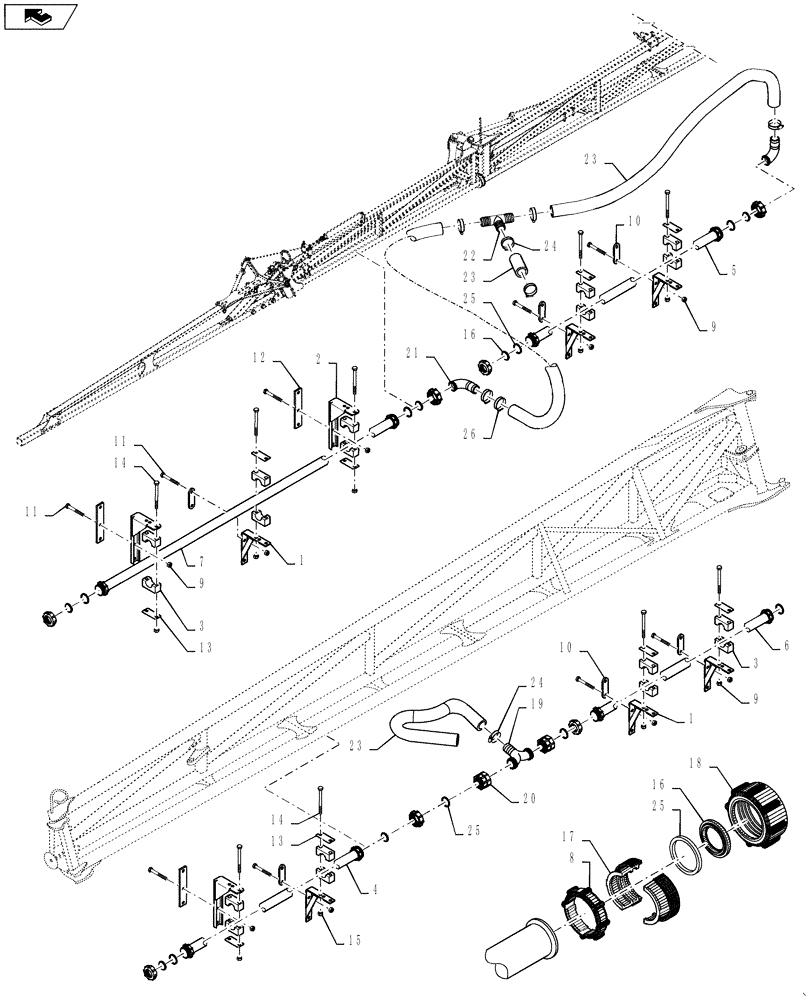

Запчасти Case IH 4430 (40.910.53) - SPRAYBAR, MID AND OUTER SECTION, 20"/30" NOZZLE SPACING, OFF CENTER, 7 SECTION, 120 BOOM (40 ) - PLUMBING

1

84490175

MOUNT

Spraybar

14шт.

2

84490178

MOUNT

Spraybar

4шт.

3

BN67054

CLAMP

Spraybar

18шт.

4

87696872

BOOM,106" Long, 7 Holes, 20/30" Nozzle Spacing

Spraybar, 7 Nozzles, 20"/30" Nozzle Spacing, 106" Long

2шт.

5

87696870

BOOM,85" Long, 6 Holes, 20/30" Nozzle Spacing

Spraybar, 6 Nozzles, 20"/30" Nozzle Spacing, 85" Long

2шт.

6

87696867

BOOM,65" Long, 7 Holes, 20/30" Nozzle Spacing

Spraybar, 7 Nozzles, 20"/30" Nozzle Spacing, 65" Long

2шт.

7

87696871

BOOM,95" Long, 7 Holes, 20/30" Nozzle Spacing

Spraybar, 7 Nozzles, 20"/30" Nozzle Spacing, 95" Long

2шт.

8

87630103

FITTING

Binding Ring

8шт.

9

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

40шт.

10

BN308039

PLATE

Spacer

14шт.

11

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

36шт.

12

87707554

BRACKET, SUPPORTING

Backer, Spraybar

4шт.

13

BN309483

PLATE

Clamp Top, Single Clamp

18шт.

14

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

36шт.

15

BN55359

LOCK NUT,1/4"-20, SS

36шт.

16

87630099

PLUG,1" SST

Flange Cap For Spraybar, Poly

8шт.

17

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve

8шт.

18

87630105

NUT

Quick Nut

8шт.

19

87630101

FITTING,Tee, PP

1-1/4" MPT x 1-1/4" MPT x 1-1/4 Hose Barb, Poly

2шт.

20

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

Coupling, Spraybar End x 1-1/4" Female NPT, With O-Ring Flange, Poly

4шт.

21

87630097

FITTING,QN Hose Shank - 1" SST x 1 1/4" Sweep 90 Degree

Elbow, 1" Flange x 1-1/4" Hose Barb, Poly

4шт.

22

BN317579

TEE

Hose Barb, 1 1/4"

2шт.

23

BN29563

HOSE

Bulk 1.25" EPDM, Discharge

1шт.

24

BN320156

HOSE CLAMP

#24, Stainless Steel

8шт.

25

84181302

SEALING RING

SEALRING Rectangular, 1 5/16" x 1 9/16" Class 5

8шт.

26

BN310448

HOSE CLAMP

#28, Stainless Steel

2шт.
