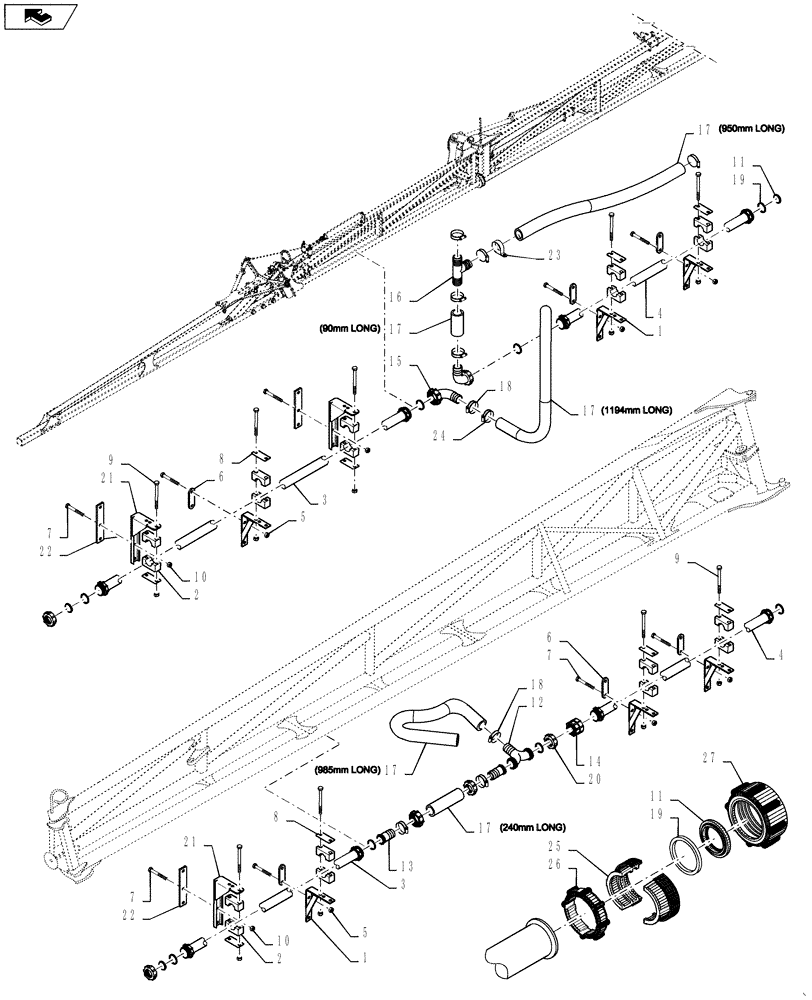

Запчасти Case IH 4430 (40.910.51) - SPRAYBAR, MID AND OUTER SECTION, 20" NOZZLE SPACING, OFF CENTER, 7 SECTION, 120 BOOM (40 ) - PLUMBING

1

84490175

MOUNT

Spraybar

14шт.

2

BN67054

CLAMP

1.315" OD

18шт.

3

87671763

BOOM,85" Long, 5 Holes, 20" Nozzle Spacing

Spraybar, 5 Nozzles, 20" Nozzle Spacing, 85" Long, Includes Ref 25 - 27

4шт.

4

87671764

BOOM,64-1/2" Long, 4 Holes, 20" Nozzle Spacing

Spraybar, 4 Nozzles, 20" Nozzle Spacing, 65" Long, Includes Ref 25 - 27

4шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

40шт.

6

BN308039

PLATE

Spacer

14шт.

7

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

40шт.

8

BN309483

PLATE

Clamp Top, Single Clamp

24шт.

9

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

36шт.

10

BN55359

LOCK NUT,1/4"-20, SS

36шт.

11

87630099

PLUG,1" SST

Flange Cap For Spraybar, Poly

14шт.

12

87630101

FITTING,Tee, PP

1-1/4" MPT x 1-1/4" MPT x 1-1/4 Hose Barb, Poly

2шт.

13

87630096

FITTING,QN Hose Shank - 1" SST X 1 1/4" Straight Shank

Straight, 1" Flange x 1-1/4" Hose Barb, Poly

4шт.

14

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

Coupling, 1-1/4"

1шт.

15

87630097

FITTING,QN Hose Shank - 1" SST x 1 1/4" Sweep 90 Degree

Elbow, 1" Flange x 1-1/4" Hose Barb, Poly

4шт.

16

BN317579

TEE

Hose Barb, 1 1/4"

2шт.

17

84345284

HOSE,31.8mm ID x 6134mm L

Bulk 1.25" EPDM, Discharge

1шт.

18

BN320156

HOSE CLAMP

#24, Stainless Steel

20шт.

19

84181302

SEALING RING

SEALRING Rectangular, 1 5/16" x 1 9/16" Class 5

20шт.

20

87638736

FITTING,QN 1" - Nut

Nut, Quick, 1-1/4" NPT, Poly

2шт.

21

84490178

MOUNT

Spraybar

4шт.

22

87707554

BRACKET, SUPPORTING

Backer, Spraybar

4шт.

23

515-23508

CLAMP,2", Insul, 3/8" Bolt

2шт.

24

BN310448

HOSE CLAMP

#28, Stainless Steel

2шт.

25

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve, Spraybar, Poly

2шт.

26

87630103

FITTING

Binding Ring, Spraybar, Poly

2шт.

27

87630105

NUT

Nut, Quick, Spraybar, Poly

2шт.

28

87630100

REDUCER FITTING,QN 1" SST x 3/4" NPT FE Adapter

1" Flange x 3/4" Female NPT, Poly, Available Additional Fittings, Not Shown

1шт.

29

87630098

45 ELBOW,QN Hose Shank - 1" SST x 1 1/4" Sweep 45 Degree

1" Flange x 1-1/4" Hose Barb, Poly, Available Additional Fittings, Not Shown

1шт.
