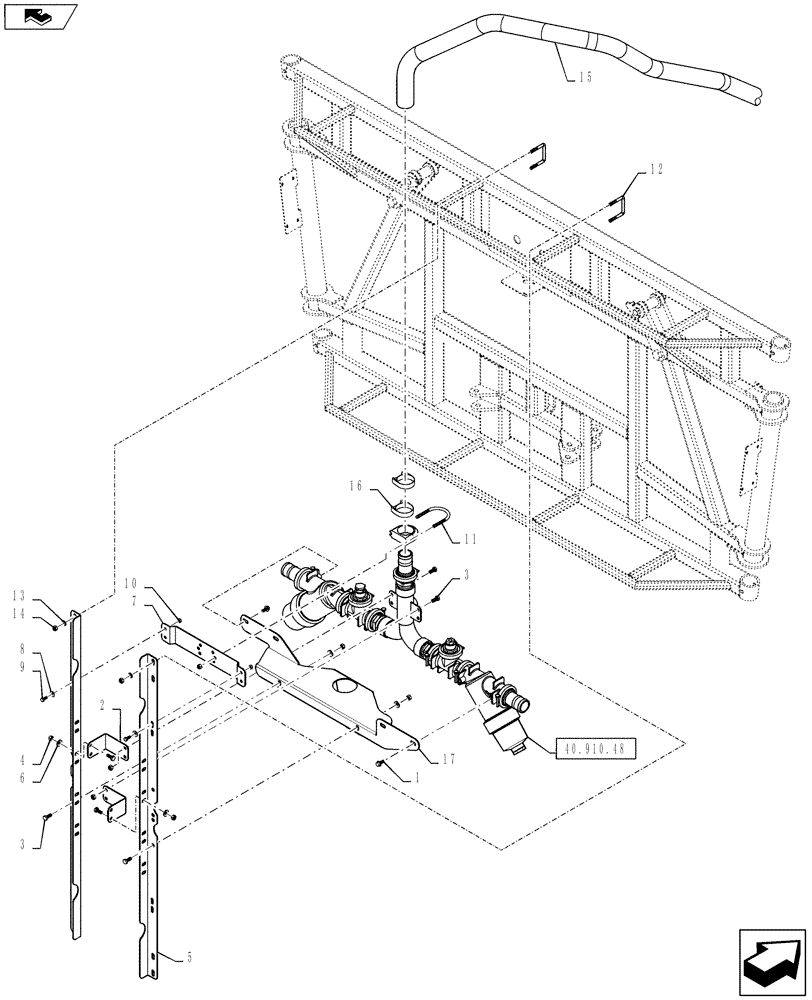

Запчасти Case IH 4430 (40.910.47) - CENTER SECTION PLUMBING, 7 SECTION, 120’ BOOM (40 ) - PLUMBING

1

87344050

SELF-TAP SCREW,Hex Wshr, 3/8" - 12 x 1"

Tapping, 3/8" X 1"

4шт.

2

BN325193

BRACKET

3-Way Manifold

2шт.

3

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

10шт.

4

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

10шт.

5

84483224

MOUNT

Manifold, Center Section

2шт.

6

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.

7

BN325194

BRACKET, SUPPORTING

Clamp, Center Section

1шт.

8

BN50142

WASHER,5/16", Stainless Steel

4шт.

9

BN50476

BOLT,5/16"-18 x 0.75", Stainless

4шт.

10

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

11

BN320384

U-BOLT

BOLT "U" Clamp, 2" Pipe

1шт.

12

87586548

U-BOLT

Square, M10 x 64 mm id x 64

4шт.

13

BN50146

WASHER,3/8", Stainless

8шт.

14

87344003

NUT,M10-1.5, 10, DOR

8шт.

15

BN29564

HOSE

2" Bulk EPDM Suction, Cut To Length Of 13'

13шт.

16

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band

4шт.

17

87623632

SUPPORT

Strainers

1шт.
