(40.910.41) - INNER BOOM PLUMBING, 6 SECTION, LO-FLOW, LH/RH, 90/100 BOOM

Запчасти Case IH 4430 (40.910.41) - INNER BOOM PLUMBING, 6 SECTION, LO-FLOW, LH/RH, 90/100 BOOM (40 ) - PLUMBING

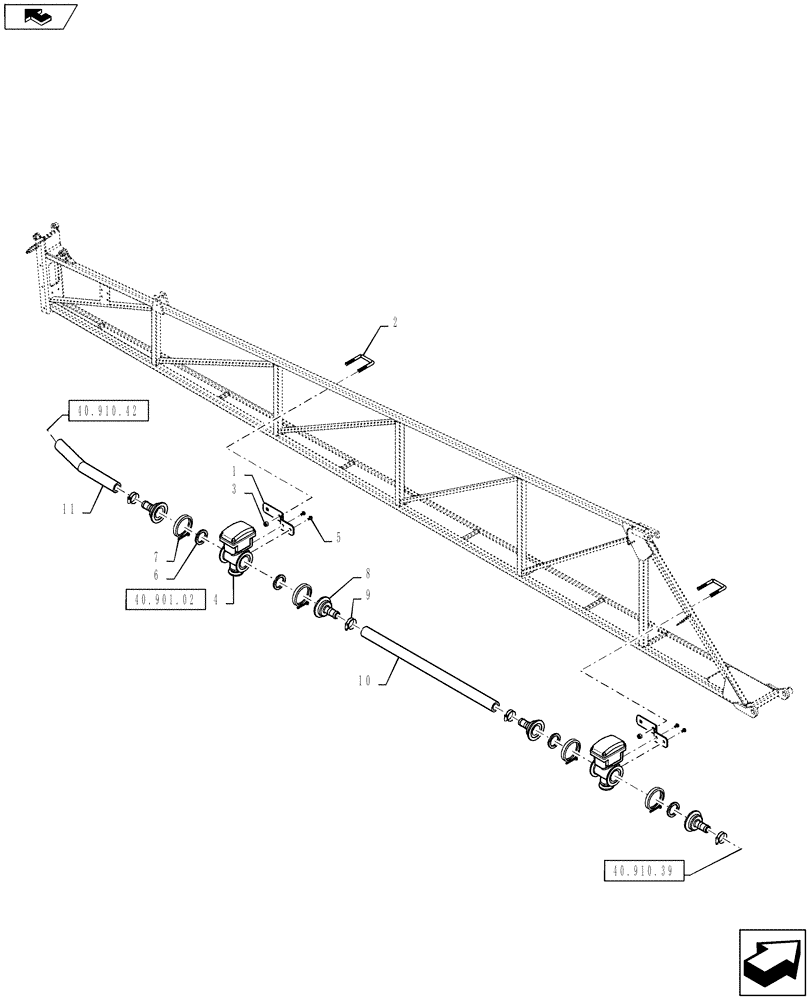

Схема запчастей Case IH 4430 - (40.910.41) - INNER BOOM PLUMBING, 6 SECTION, LO-FLOW, LH/RH, 90/100 BOOM (40 ) - PLUMBING
40.901.02
8
1
5
4
2
40.910.42
home
3
10
7
9
40.910.39
11
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87265462

MOUNTING PARTS

Boom Shutoff Valve

2шт.

2

BN319919

U-BOLT

2.06 ID x 2-3/4 x 3/8

2шт.

3

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

4

87268840

VALVE

Lo-Flow Boom Shutoff

2шт.

See Fig 40.901.02 For Service Parts Breakdown

1шт.

5

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

4шт.

6

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

2шт.

7

BN303199

CLAMP,2" Flange

2" Standard Flange

2шт.

8

BN317966

FLANGE,2" Flange x 1" Hose Barb, Poly

2" Flange x 1" Hose Barb, Poly

4шт.

9

BN75990

HOSE CLAMP

#16, Stainless Steel

4шт.

10

87269949

HOSE

1" x 154", EPDM, From Inner Boom Valve To Mid Boom Valve

1шт.

11

87269950

HOSE

1" x 159", EPDM, To Outer Boom Valve

1шт.
