(40.910.40) - CENTER SECTION MANIFOLD GROUP, 6 SECTION, LO-FLOW, 90/100 BOOM

Запчасти Case IH 4430 (40.910.40) - CENTER SECTION MANIFOLD GROUP, 6 SECTION, LO-FLOW, 90/100 BOOM (40 ) - PLUMBING

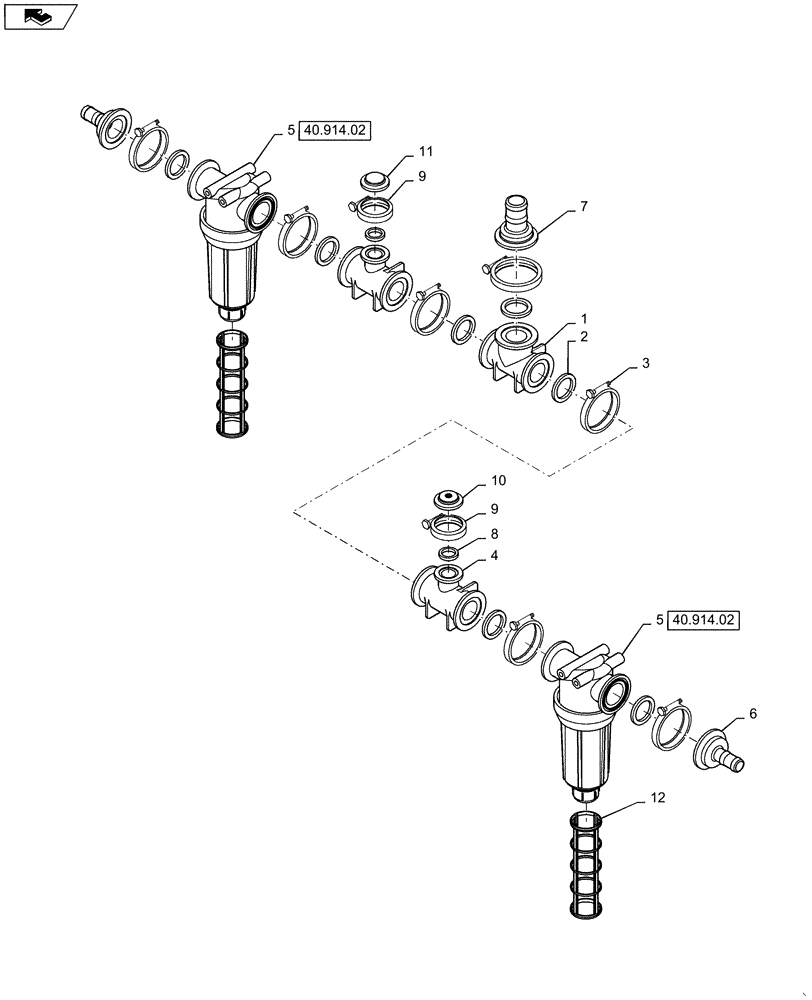

Схема запчастей Case IH 4430 - (40.910.40) - CENTER SECTION MANIFOLD GROUP, 6 SECTION, LO-FLOW, 90/100 BOOM (40 ) - PLUMBING
6
3
8
12
1
5
40.914.02
10
4
7
home
5
9
40.914.02
2
11
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN303196

TEE,2" Flange x 2" Flange x 2" Flange, Poly

2" Flange, Poly

1шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

7шт.

3

BN303199

CLAMP,2" Flange

2" Standard Flange

7шт.

4

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

2" Flange x 2" Flange x 1" Flange, Poly

2шт.

5

87265489

FILTER STRAINER

Strainer, 2" Flange

2шт.

See Fig 40.914.02 For Service Parts Breakdown

1шт.

6

BN317966

FLANGE,2" Flange x 1" Hose Barb, Poly

2" Flange x 1" Hose Barb, Poly

2шт.

7

BN306901

FITTING,2" Flange x 1-1/2" Hose Barb, Poly

2" Flange x 1-1/2" Hose Barb, Poly

1шт.

8

BN303205

GASKET

1” Flange, EPDM

2шт.

9

BN303203

CLAMP,1" Flange

1" Flange

2шт.

10

BN324133

PLUG,1" Flange x 1/4" Female NPT, Poly

1" Flange x 1/4" FPT, Poly

1шт.

11

BN306897

PLUG,1" Flange, Poly

1" Flange, Poly

1шт.

12

87265492

SCREEN,80 Mesh, SST, Blue

80 Mesh, Stainless Steel

2шт.
