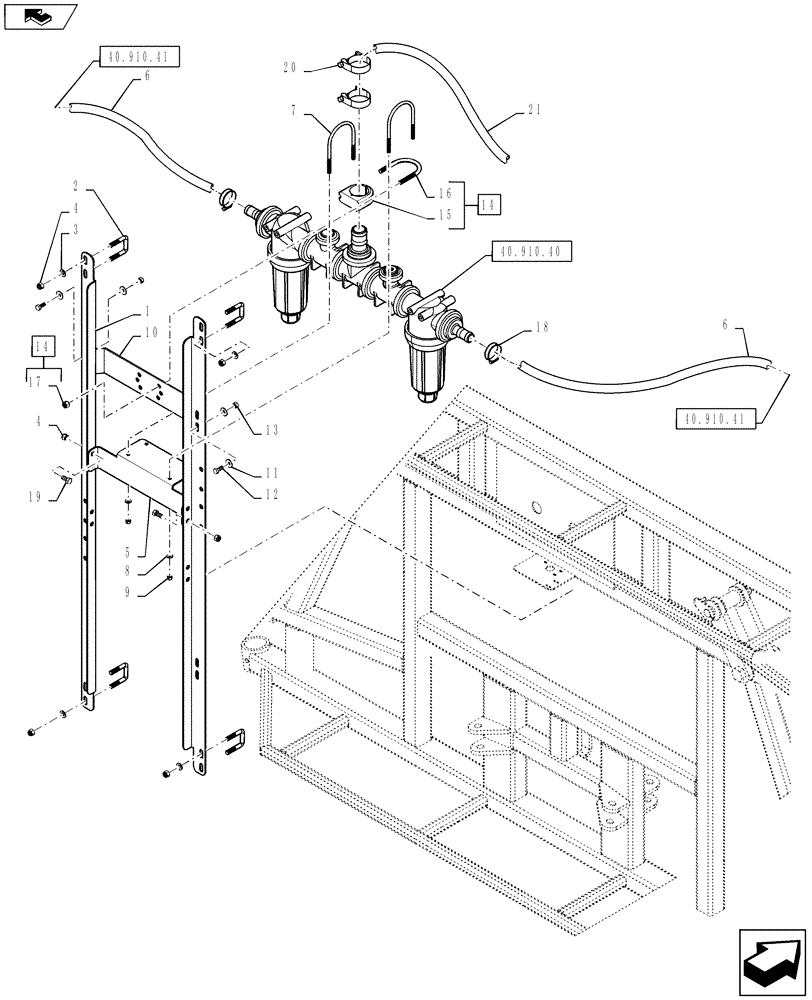

Запчасти Case IH 4430 (40.910.39) - CENTER SECTION PLUMBING, 6 SECTION, LO-FLOW, 90/100 BOOM (40 ) - PLUMBING

1

87267543

SUPPORT

Manifold, Vertical

2шт.

2

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep

4шт.

3

BN50146

WASHER,3/8", Stainless

8шт.

4

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

12шт.

5

87265454

SUPPORT

Mount, Lo-Flow Manifold

1шт.

6

BN319019

HOSE,1.00" ID x 105.00"

EPDM, Runs To Inner Boom Plumbing

2шт.

7

BN303201

U-BOLT

BOLT "U" 1/4 x 2.38R x 3.75

2шт.

8

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

0.281 X 0.625 X 0.065, HTS, DOR, HDN

4шт.

9

87343957

NUT,1/4" - 20

1/4"-20, GB, DOR

4шт.

10

BN325194

BRACKET, SUPPORTING

Clamp, Center Section

1шт.

11

BN50142

WASHER,5/16", Stainless Steel

8шт.

12

BN50476

BOLT,5/16"-18 x 0.75", Stainless

4шт.

13

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

14

343817A1

HOSE CLAMP

U-Bolt, 1-1/2" Pipe

1шт.

15

343818A1

CLAMP

1 1/2" Pipe, Vinyl Insulated

1шт.

16

343819A1

U-BOLT

3/8"-16 x 2.42" id, 2.20" long

1шт.

17

87343970

NUT,3/8"-16, G8, DOR

2шт.

18

BN320156

HOSE CLAMP

#24, Stainless Steel

2шт.

19

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

4шт.

20

BN53811

CLAMP

2" ID, T-bolt

2шт.

21

BN53621

HOSE,1.50" ID BULK

Suction, EPDM, Cut To Length Of 12.83', Runs To Hose Barb On RH Side Of Sprayer By Product Pump

1шт.
