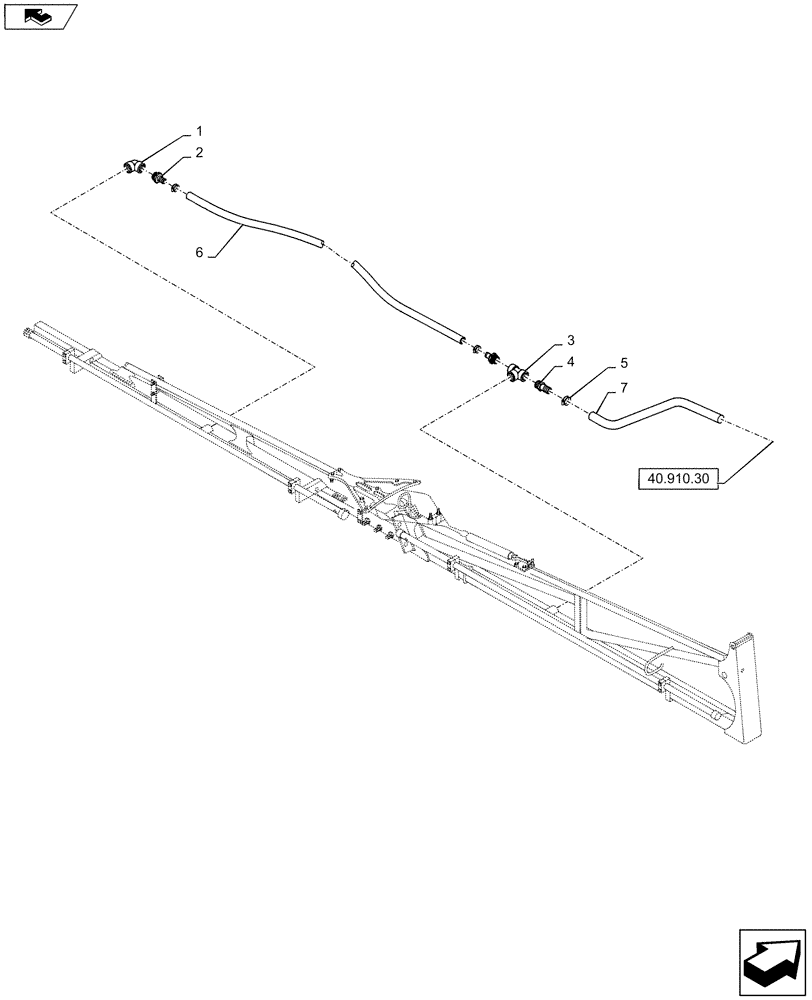

(40.910.34) - OUTER BOOM PLUMBING, LH/RH, 5-6 SECTION, 100’ BOOM

Запчасти Case IH 4430 (40.910.34) - OUTER BOOM PLUMBING, LH/RH, 5-6 SECTION, 100’ BOOM (40 ) - PLUMBING

Схема запчастей Case IH 4430 - (40.910.34) - OUTER BOOM PLUMBING, LH/RH, 5-6 SECTION, 100’ BOOM (40 ) - PLUMBING
home
1
6
5
3
40.910.30
4
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN313202

ELBOW

1-1/4" NPT, 90°, Poly

1шт.

2

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

2шт.

3

BN73662

TEE

1-1/4", Poly

1шт.

4

BN73660

PIPE FITTING,1-1/4" NPT Male x 1-1/4" Barbed

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

5

BN310447

HOSE CLAMP

#20, Stainless Steel

3шт.

6

BN53844

HOSE

EPDM, 1" ID X 120"

1шт.

7

87383454

HOSE,80.00 mm

1-1/4" x 108", Suction

1шт.
