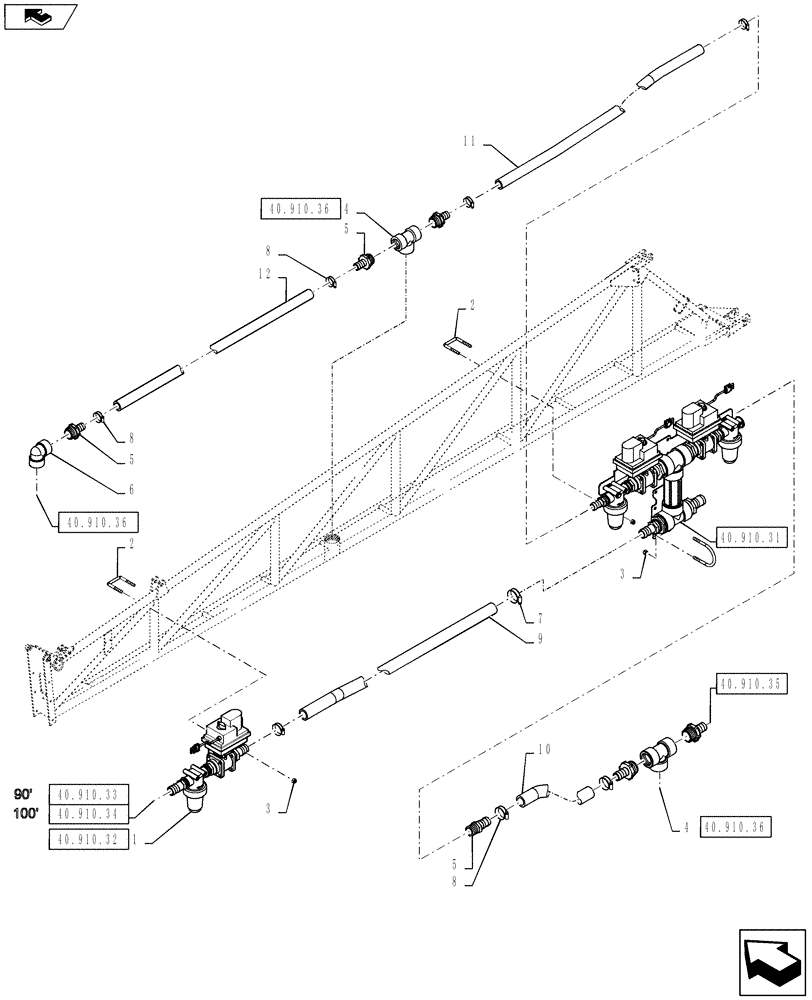

Запчасти Case IH 4430 (40.910.30) - INNER BOOM PLUMBING, 6 SECTION, LH/RH, 90/100 BOOM (40 ) - PLUMBING

1

BN321452

VALVE

Outer Section Valve Group, 6 Section, LH

1шт.

See Fig 40.910.32 For Service Parts Breakdown

1шт.

1

BN321453

VALVE

Outer Section Valve Group, 6 Section, RH

1шт.

See Fig 40.910.32 For Service Parts Breakdown

1шт.

2

BN319919

U-BOLT

2.06 ID x 2-3/4 x 3/8

6шт.

3

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

12шт.

4

BN73662

TEE

1-1/4", Poly

2шт.

5

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

5шт.

6

BN313202

ELBOW

1-1/4" NPT, 90°, Poly

1шт.

7

BN320156

HOSE CLAMP

#24, Stainless Steel

2шт.

8

BN310447

HOSE CLAMP

#20, Stainless Steel

6шт.

9

BN321478

HOSE,31.75mm ID x 3962.4mm L

EPDM, From Inner Section Valve Group To Outer Section Valve Group

1шт.

10

BN53850

HOSE

1.00" ID X 36.00" EPDM, Runs To First Spraybar On Inner Boom

1шт.

11

BN321476

HOSE,1.00" ID x 79.00"

EPDM, Runs to Second Spraybar on Inner Boom

1шт.

12

BN320876

HOSE,1.00" ID x 75.00"

EPDM, Runs to Third Spraybar on Inner Boom

1шт.
