(40.910.23[01]) - SPRAYBAR, OUTER SECTION, 20" NOZZLE SPACING, OFF CENTER, 5 SECTION, 90 BOOM, BSN YBT031520

Запчасти Case IH 4430 (40.910.23[01]) - SPRAYBAR, OUTER SECTION, 20" NOZZLE SPACING, OFF CENTER, 5 SECTION, 90 BOOM, BSN YBT031520 (40 ) - PLUMBING

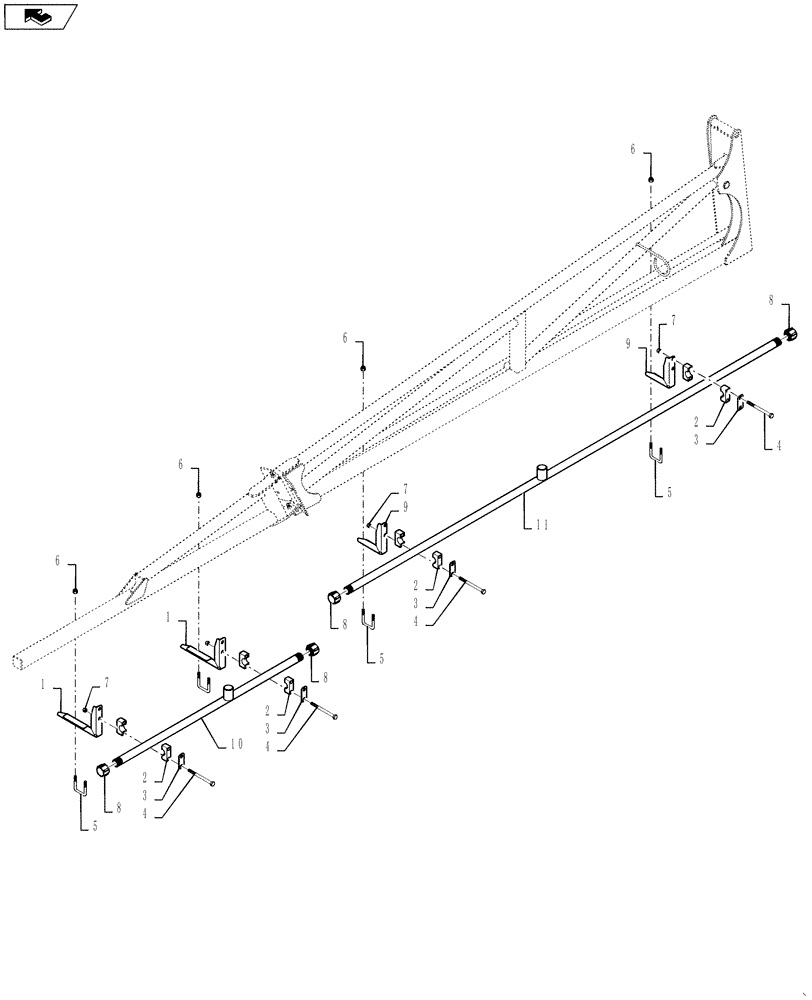

Схема запчастей Case IH 4430 - (40.910.23[01]) - SPRAYBAR, OUTER SECTION, 20" NOZZLE SPACING, OFF CENTER, 5 SECTION, 90 BOOM, BSN YBT031520 (40 ) - PLUMBING
7
2
8
11
2
home
1
7
8
8
3
1
4
4
2
6
9
6
3
9
4
10
5
8
2
6
5
6
4
5
7
3
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87562807

BRACKET, SUPPORTING

Mount, Spraybar

2шт.

2

BN67054

CLAMP

1.315" OD

4шт.

3

BN309483

PLATE

Clamp Top, Single Clamp

4шт.

4

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

8шт.

5

BN319919

U-BOLT

2.06 ID x 2-3/4 x 3/8

4шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

7

BN55359

LOCK NUT,1/4"-20, SS

8шт.

8

BN73606

CAP

1" NPT, Poly Pipe

4шт.

9

BN323957

BRACKET

Spraybar Mount

2шт.

10

87266669

PIPE,45" Long, 3 Holes, 20" Nozzle Spacing

Spraybar, 3 Nozzles, 20" Nozzle Spacing, Stainless Steel, 45" Long

1шт.

11

87266668

PIPE,105" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, 6 Nozzles, 20" Nozzle Spacing, Stainless Steel, 105" Long

1шт.
