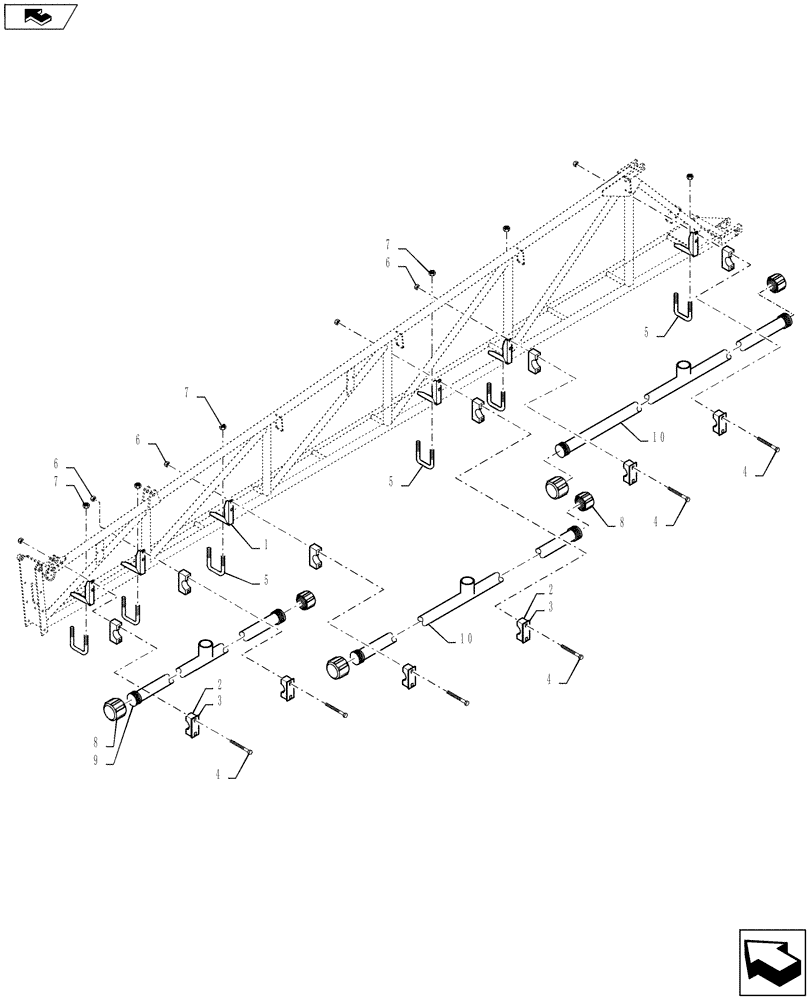

Запчасти Case IH 4430 (40.910.22) - SPRAYBAR, INNER SECTION, 20" NOZZLE SPACING, OFF CENTER, 5 SECTION, 90 BOOM (40 ) - PLUMBING

1

BN323957

BRACKET

Spraybar Mount

6шт.

2

BN67054

CLAMP

1.315" OD

6шт.

3

BN309483

PLATE

Clamp Top, Single Clamp

6шт.

4

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

12шт.

5

BN319919

U-BOLT

2.06 ID x 2-3/4 x 3/8

6шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

12шт.

7

BN55359

LOCK NUT,1/4"-20, SS

12шт.

8

BN73606

CAP

1" NPT, Poly Pipe

6шт.

9

87266669

PIPE,45" Long, 3 Holes, 20" Nozzle Spacing

Spraybar, 3 Nozzles, 20" Nozzle Spacing, Stainless Steel, 45" Long

1шт.

10

87266668

PIPE,105" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, 6 Nozzles, 20" Nozzle Spacing, Stainless Steel, 105" Long

2шт.
