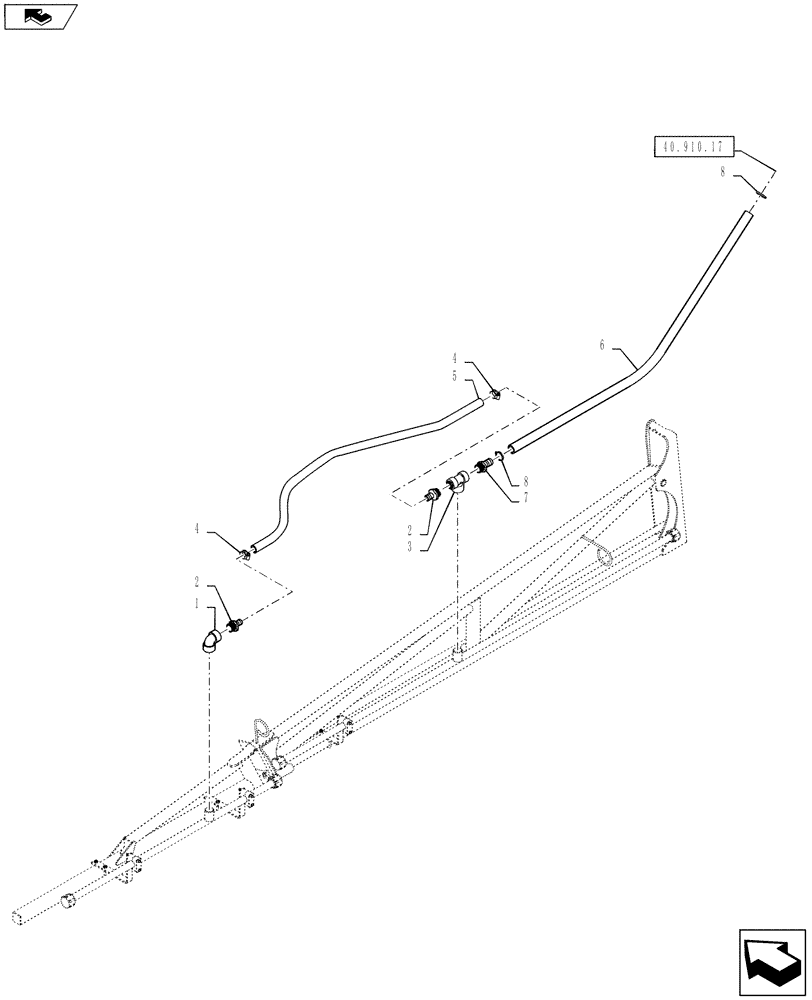

Запчасти Case IH 4430 (40.910.20) - OUTER BOOM PLUMBING, LH/RH, 5 SECTION, 90’ BOOM (40 ) - PLUMBING

1

BN313202

ELBOW

1-1/4" NPT, 90°, Poly

1шт.

2

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

2шт.

3

BN73662

TEE

1-1/4", Poly

1шт.

4

BN310447

HOSE CLAMP

#20, Stainless Steel

2шт.

5

BN321636

HOSE,1.00" ID x 78.00"

EPDM

1шт.

6

87383454

HOSE,80.00 mm

Runs To Outer Valve Group

1шт.

7

BN73660

PIPE FITTING,1-1/4" NPT Male x 1-1/4" Barbed

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

8

BN320156

HOSE CLAMP

#24, Stainless Steel

2шт.
