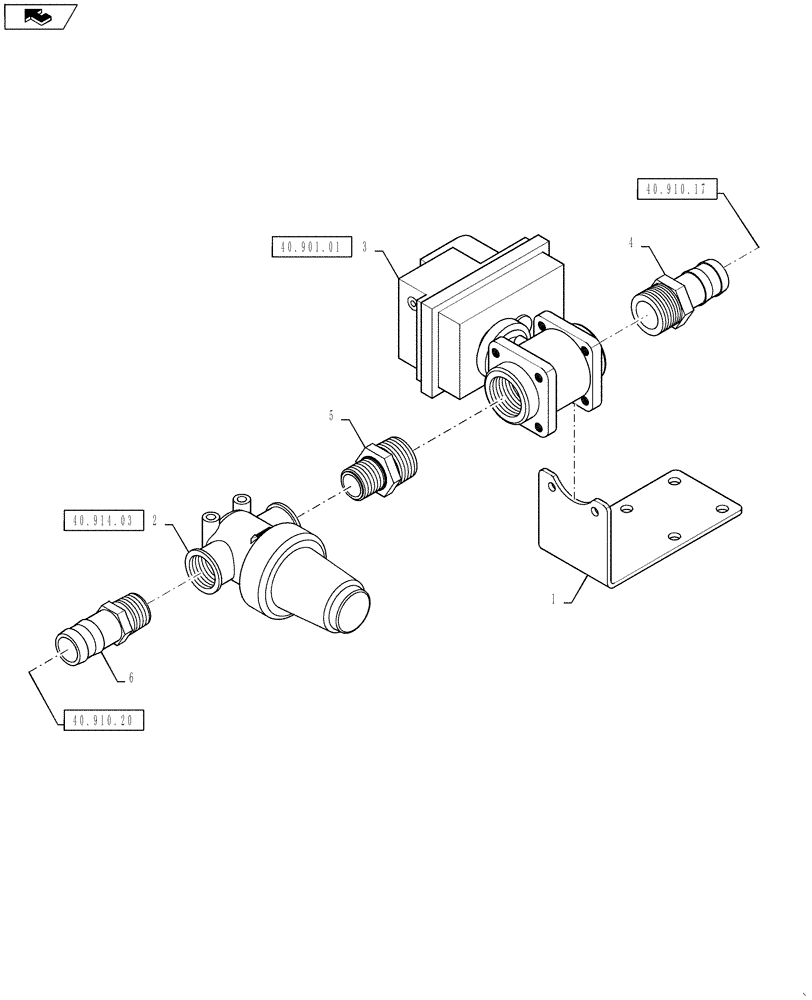

Запчасти Case IH 4430 (40.910.19) - OUTER SECTION VALVE GROUP, 5 SECTION, LH/RH, 90 BOOM (40 ) - PLUMBING

1

BN319996

BRACKET

NPT Ball Valve

1шт.

2

BN320072

FILTER STRAINER

1" NPT, 50 Mesh, Poly

1шт.

See Fig 40.914.03 For Service Parts Breakdown

1шт.

3

87268179

VALVE

1.25" Ball, Electric, Boom Shut Off Valve

1шт.

See Fig 40.901.01 For Service Parts Breakdown

1шт.

4

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

5

BN73656

NIPPLE,1-1/4" Male NPT x 1" Male NPT, Poly

1-1/4" NPT x 1" NPT, Poly

1шт.

6

BN321509

FITTING

1" NPT x 1-1/4" Hose Barb, Poly

1шт.
