(40.910.17) - INNER BOOM PLUMBING, 5 SECTION, LH/RH, 90 BOOM

Запчасти Case IH 4430 (40.910.17) - INNER BOOM PLUMBING, 5 SECTION, LH/RH, 90 BOOM (40 ) - PLUMBING

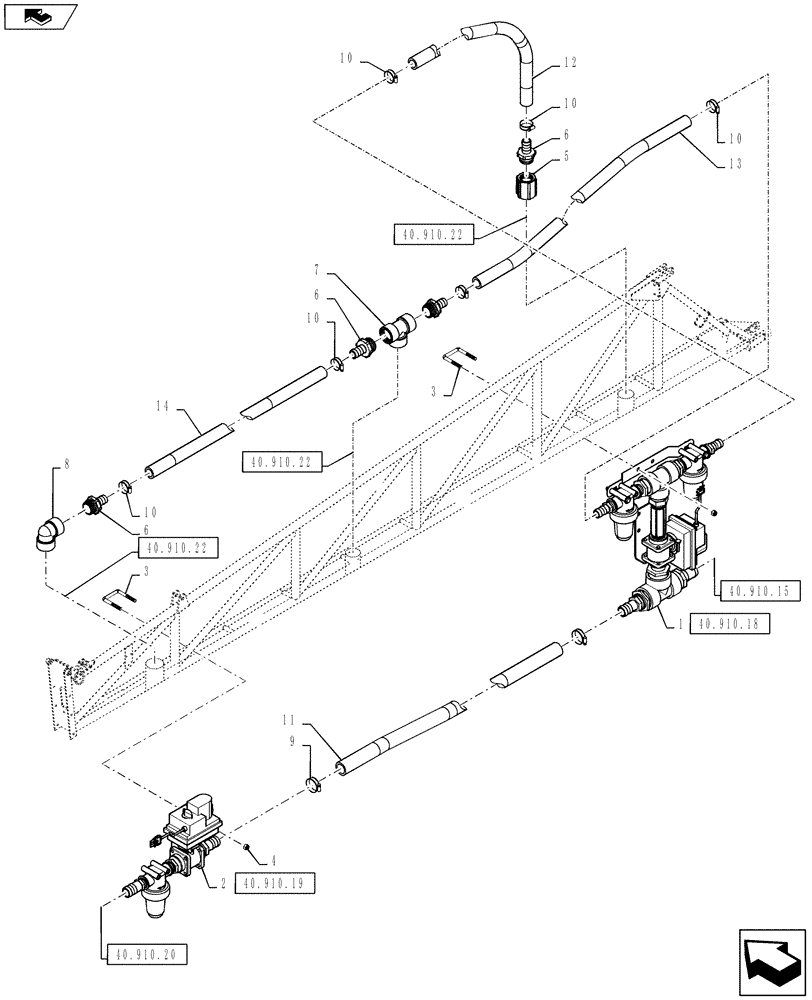

Схема запчастей Case IH 4430 - (40.910.17) - INNER BOOM PLUMBING, 5 SECTION, LH/RH, 90 BOOM (40 ) - PLUMBING
10
11
7
10
14
10
4
3
40.910.22
6
12
40.910.22
40.910.20
2
10
40.910.18
6
5
3
6
1
13
10
8
40.910.19
9
home
40.910.15
40.910.22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN321454

VALVE

Inner Section Valve Group, 5 Section, LH

1шт.

See Fig 40.910.18 For Service Parts Breakdown

1шт.

1

BN321455

VALVE

Inner Section Valve Group, 5 Section, RH, Not Shown

1шт.

See Fig 40.910.18 For Service Parts Breakdown

1шт.

2

BN321452

VALVE

Outer Section Valve Group, 5 Section, LH

1шт.

See Fig 40.910.19 For Service Parts Breakdown

1шт.

2

BN321453

VALVE

Outer Section Valve Group, 5 Section, RH, Not Shown

1шт.

See Fig 40.910.19 For Service Parts Breakdown

1шт.

3

BN319919

U-BOLT

2.06 ID x 2-3/4 x 3/8

5шт.

4

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

10шт.

5

BN305269

COUPLING

1-1/4" NPT, Poly

1шт.

6

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

4шт.

7

BN73662

TEE

1-1/4", Poly

1шт.

8

BN313202

ELBOW

1-1/4" NPT, 90°, Poly

1шт.

9

BN320156

HOSE CLAMP

#24, Stainless Steel

2шт.

10

BN310447

HOSE CLAMP

#20, Stainless Steel

6шт.

11

BN321478

HOSE,31.75mm ID x 3962.4mm L

EPDM, From Inner Section Valve Group To Outer Section Valve Group

1шт.

12

BN53850

HOSE

1.00" ID X 36.00" EPDM, Runs To First Spraybar On Inner Boom

1шт.

13

BN321476

HOSE,1.00" ID x 79.00"

EPDM, Runs to Second Spraybar on Inner Boom

1шт.

14

BN320876

HOSE,1.00" ID x 75.00"

EPDM, Runs to Third Spraybar on Inner Boom

1шт.
