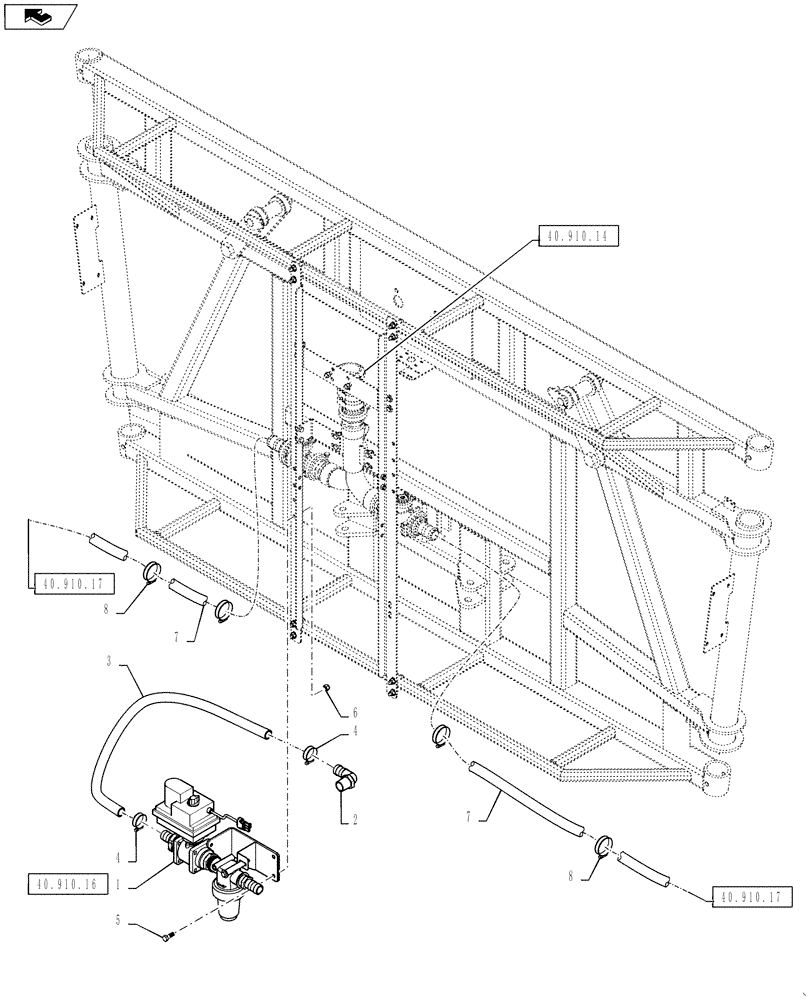

Запчасти Case IH 4430 (40.910.15) - BOOM PLUMBING, CENTER SECTION TO SPRAY BAR, 5 SECTION, 90 BOOM (40 ) - PLUMBING

1

BN325195

VALVE

Center Section Valve Group, 5 Section

1шт.

See Fig 40.910.16 For Service Parts Breakdown

1шт.

2

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

3

BN69394

HOSE

1” EPDM X 44.00”, Runs From Center Secton Manifold To Center Section Valve

1шт.

4

BN75990

HOSE CLAMP

#16, Stainless Steel

2шт.

5

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

7

342076A1

HOSE

1.5" x 147", EPDM, Runs From Center Section Manifold To Inner Boom Plumbing

2шт.

8

BN310448

HOSE CLAMP

#28, Stainless Steel

4шт.
