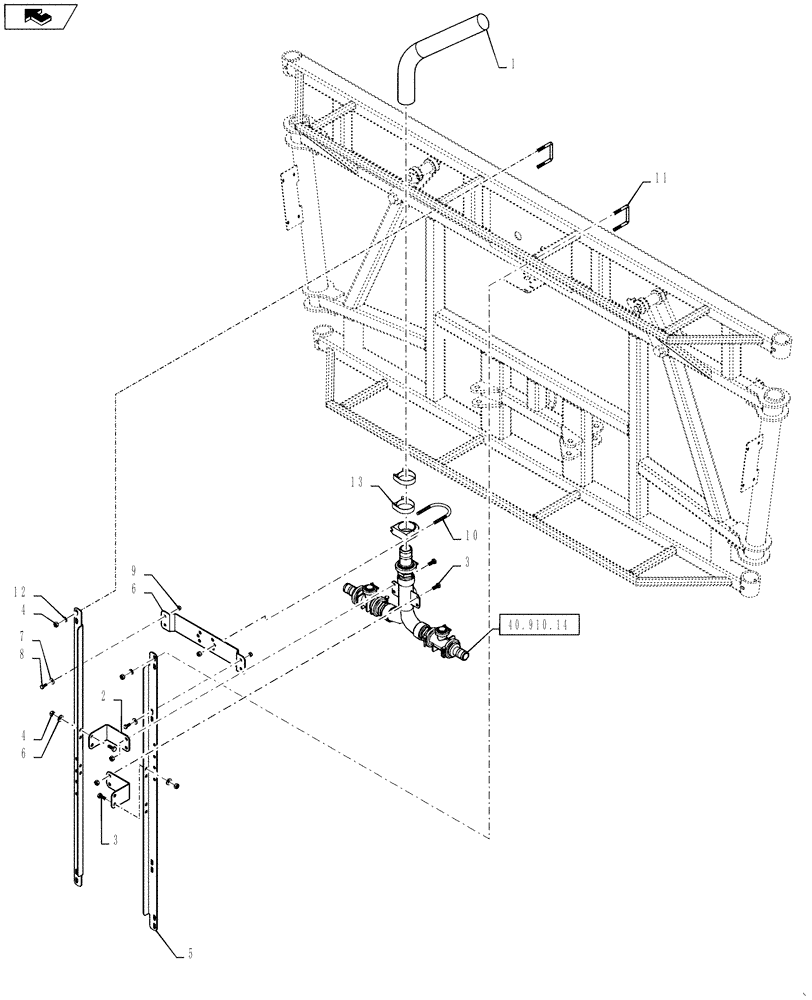

Запчасти Case IH 4430 (40.910.13) - CENTER SECTION PLUMBING, 5 SECTION BOOM, 90 BOOM (40 ) - PLUMBING

1

BN29564

HOSE

EPDM, 2.00" ID x 13.00', Runs To Hose Barb On RH Side Of Machine

1шт.

2

84174089

BRACKET

3-Way Manifold

2шт.

3

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

8шт.

4

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

16шт.

5

87267543

SUPPORT

Manifold, Vertical

2шт.

6

BN325194

BRACKET, SUPPORTING

Clamp, Center Section

1шт.

7

BN50142

WASHER,5/16", Stainless Steel

4шт.

8

BN50476

BOLT,5/16"-18 x 0.75", Stainless

4шт.

9

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

10

BN320384

U-BOLT

BOLT "U" Clamp, 2" Pipe

1шт.

11

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep

4шт.

12

BN50146

WASHER,3/8", Stainless

8шт.

13

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band

2шт.
