Запчасти Case IH 4430 (40.910.09) - PLUMBING STRAINER, LO-FLOW (40 ) - PLUMBING

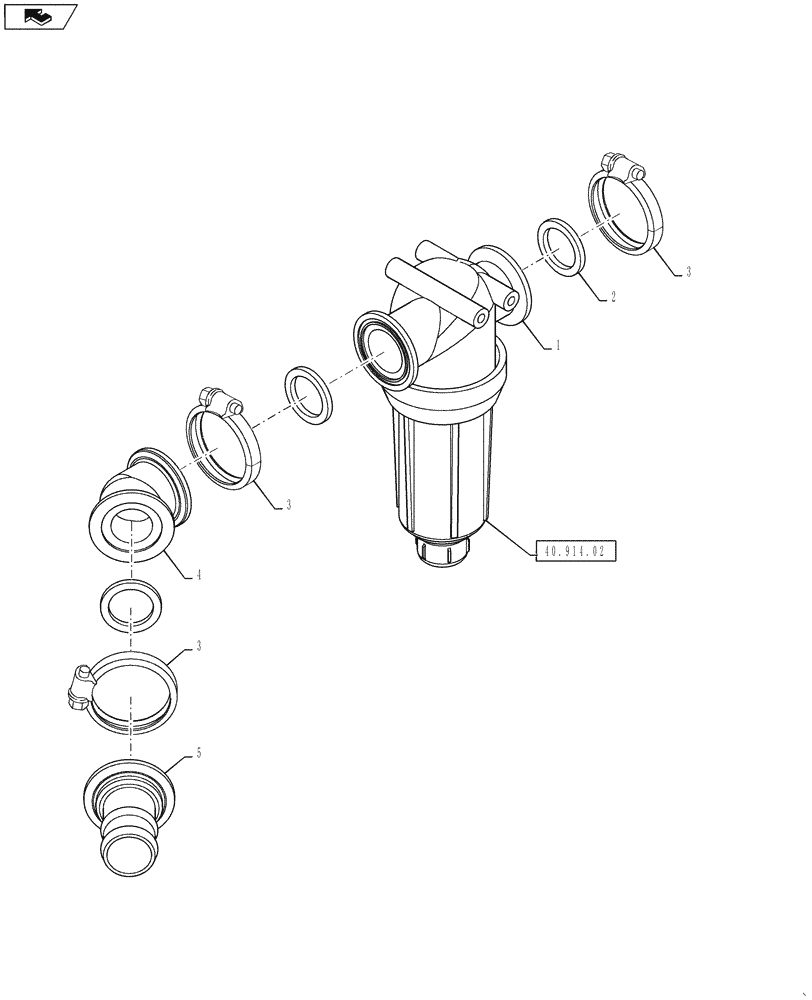

Схема запчастей Case IH 4430 - (40.910.09) - PLUMBING STRAINER, LO-FLOW (40 ) - PLUMBING
5
1
4
home
3
3
2
3
40.914.02

Артикул

Название

Примечание

Количество

1

87265489

FILTER STRAINER

Strainer, 2" Flange

1шт.

See Fig 40.914.02 For Service Parts Breakdown

1шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

3шт.

3

BN303199

CLAMP,2" Flange

2" Standard Flange

3шт.

4

87265590

COUPLING,2" x 2" 45 Degree Flange

45º, 2" Flange, Poly

1шт.

5

405780A1

FITTING,2" Flange x 2" Hose Barb

2" Flange x 2" Hose Barb, Poly

1шт.

6

87268604

SCREEN,16 Mesh, SST, Gray

16 Mesh, SS, Gray, Not Shown

1шт.

Выбрано товаров: 7
