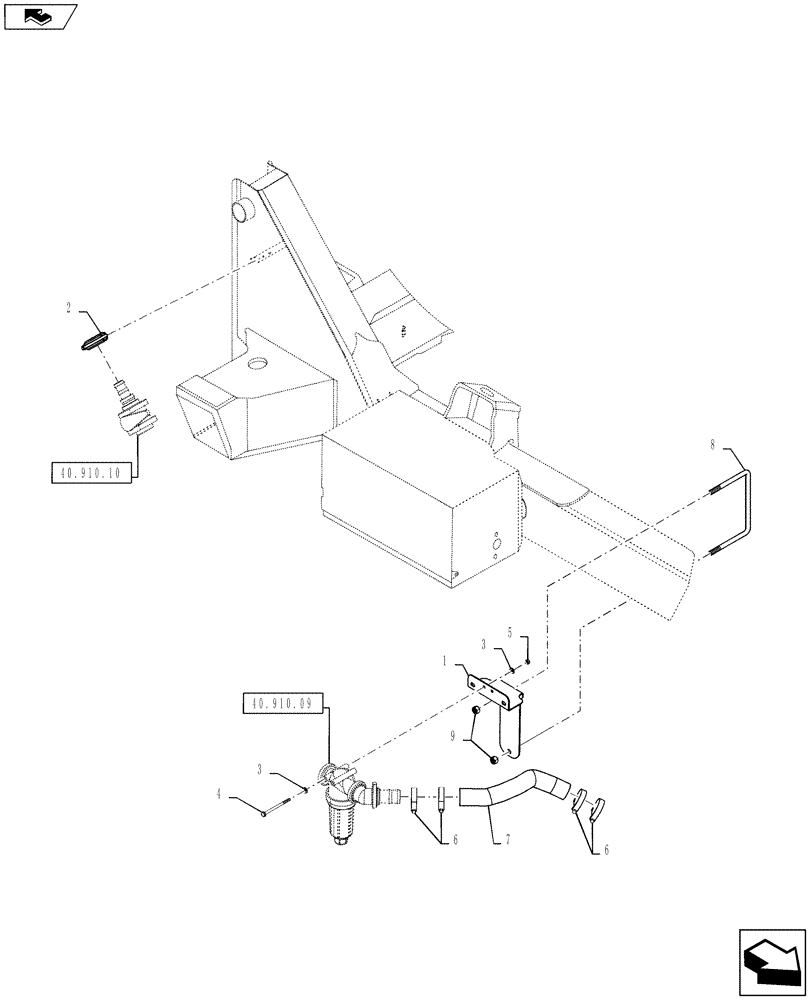

Запчасти Case IH 4430 (40.910.08) - STRAINER PLUMBING, LO-FLOW (40 ) - PLUMBING

1

84313733

MOUNTING PLATE

Strainer

1шт.

2

343817A1

HOSE CLAMP

U-Bolt, 1-1/2" Pipe

1шт.

3

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

4

86980394

BOLT,Hex, M8 -1.25 x 140mm, Cl 8.8, DOR

2шт.

5

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

6

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band

4шт.

7

BN29564

HOSE

2" Bulk EPDM Suction, Cut To Length Of 1.67'

1шт.

8

BN325918

U-BOLT

M16 X 256 ID X 187 IL

1шт.

9

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.
