(40.910.05) - THROTTLE VALVE PLUMBING, STANDARD FLOW

Запчасти Case IH 4430 (40.910.05) - THROTTLE VALVE PLUMBING, STANDARD FLOW (40 ) - PLUMBING

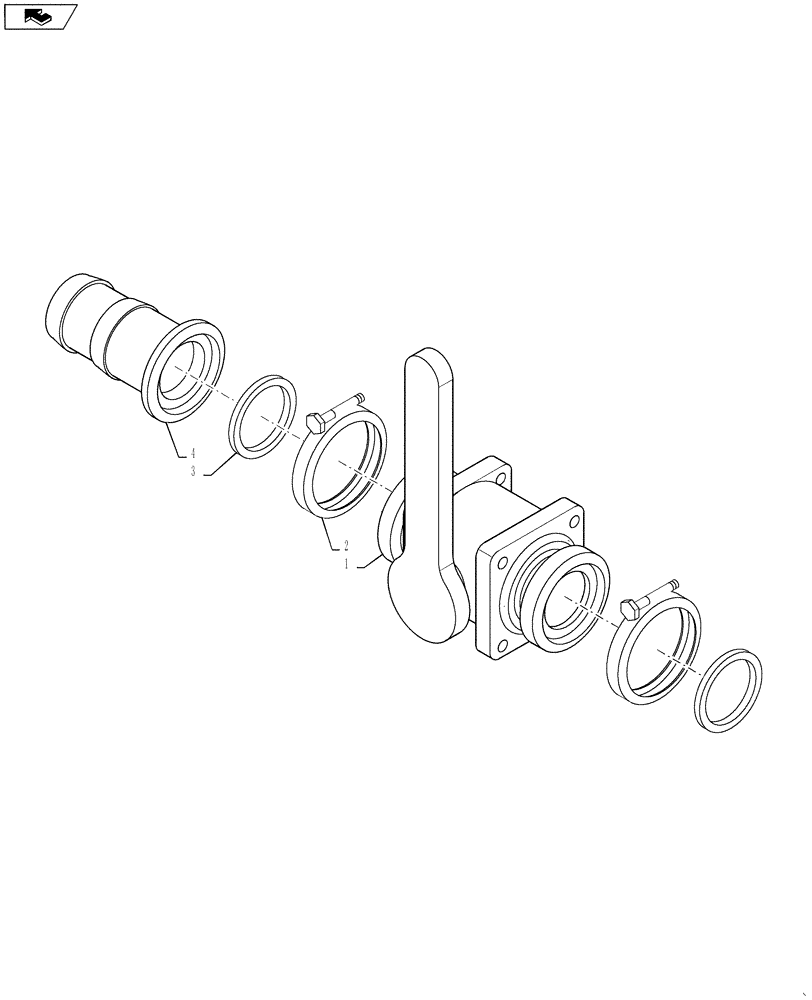

Схема запчастей Case IH 4430 - (40.910.05) - THROTTLE VALVE PLUMBING, STANDARD FLOW (40 ) - PLUMBING
4
3
home
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87268158

VALVE

2" Full Port Manifold, Throttle

1шт.

2

BN313773

CLAMP,2" Full Port

2" Flange

2шт.

3

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

2шт.

4

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

2" Full Flange X 2" Hose Barb, Poly

1шт.
