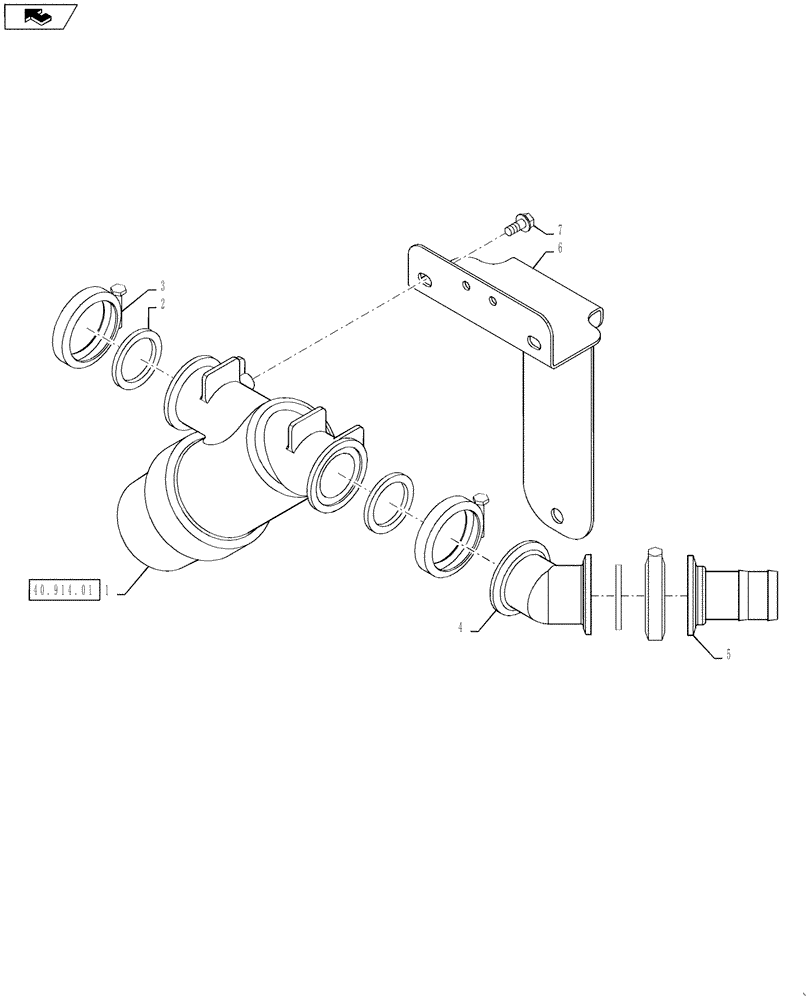

Запчасти Case IH 4430 (40.910.04) - PLUMBING STRAINER, STANDARD FLOW (40 ) - PLUMBING

1

87706933

FILTER STRAINER,2" Full Port Manifold Y Strainer w/10 Mesh Screen

"Y" Style, 2" Full Port Flange, 10 Mesh Screen, Poly

1шт.

See Fig 40.914.01 For Service Parts Breakdown

1шт.

2

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

3шт.

3

BN313773

CLAMP,2" Full Port

2" Flange

3шт.

4

87267540

ELBOW,45 Degree Elbow, 2" Full Port Flange x 2" Full Port Flange, Poly

Manifold 2" x 45º Full Port

1шт.

5

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

2" Full Flange X 2" Hose Barb, Poly

1шт.

6

84313733

MOUNTING PLATE

Strainer

1шт.

7

87344050

SELF-TAP SCREW,Hex Wshr, 3/8" - 12 x 1"

Tapping, 3/8" X 1"

2шт.
