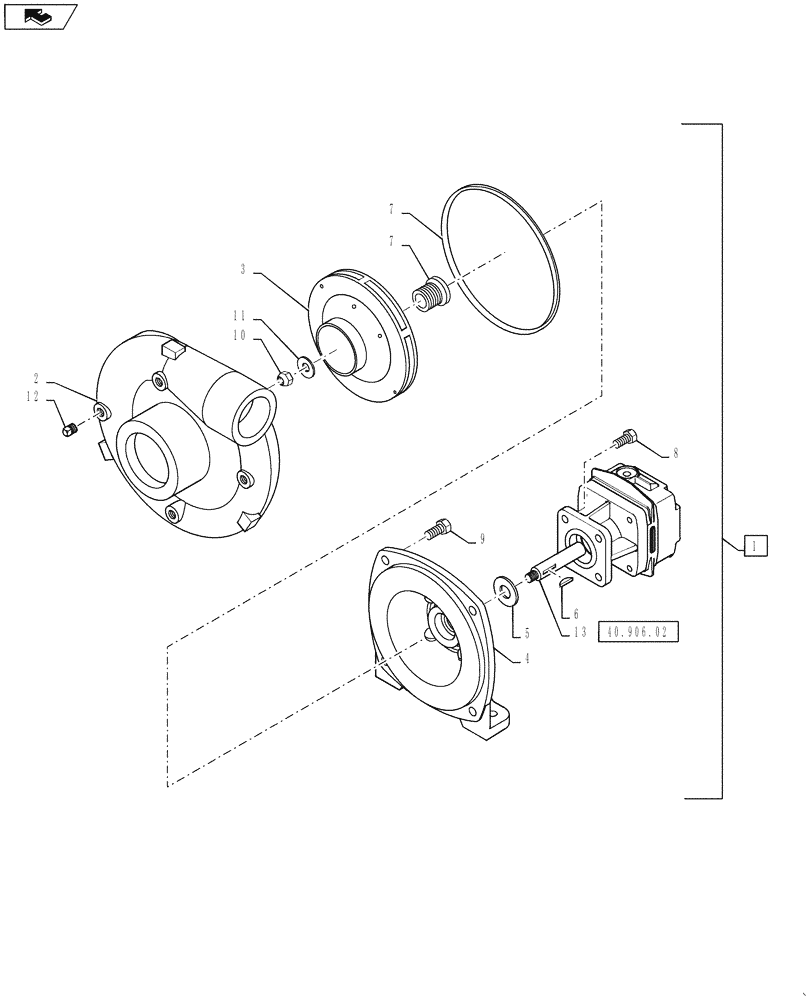

Запчасти Case IH 4430 (40.906.01) - STANDARD FLOW PRODUCT PUMP (40 ) - PLUMBING

1

87268178

PUMP

Product Pump

1шт.

2

87610599

CASING

Pump Front Casing

1шт.

3

344031A1

IMPELLER

CW Rotation

1шт.

4

4192

FLANGE

Pump Rear Casing, Pump Mounting Flange

1шт.

5

4194

RING

Slinger Seal

1шт.

6

6059

KEY

Shaft

1шт.

7

87265476

REPAIR KIT

Seal Kit

1шт.

8

84270018

BOLT

5/16" - 18 x 7/8"

4шт.

9

84270010

BOLT

3/8" - 16 x 7/8"

4шт.

10

4199

NUT

Impeller

1шт.

11

84272048

WASHER

Impeller

1шт.

12

4187

DRAIN PLUG

1шт.

13

84389233

MOTOR-PUMP

Product Pump

1шт.

See Fig 40.906.02 For Service Parts Breakdown

1шт.
