Запчасти Case IH 4430 (40.902.21[02]) - OPTIONAL FRONT FILL SERIAL NUMBER YDT034819 AND AFTER (40 ) - PLUMBING

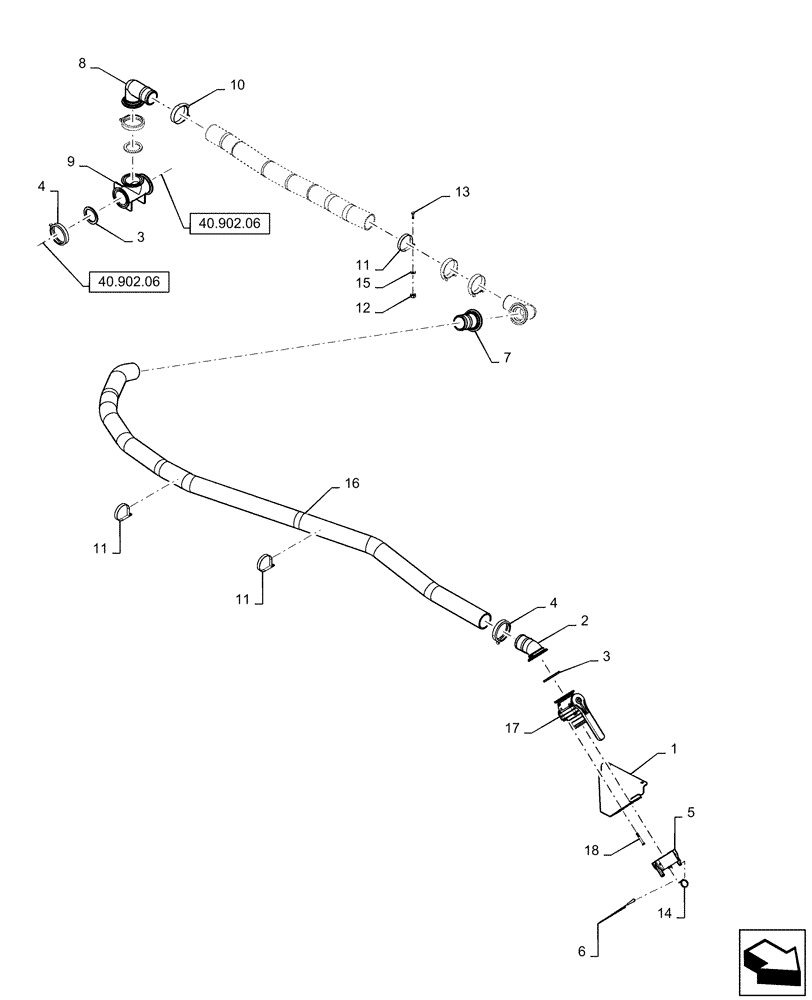

Схема запчастей Case IH 4430 - (40.902.21[02]) - OPTIONAL FRONT FILL SERIAL NUMBER YDT034819 AND AFTER (40 ) - PLUMBING
4
11
3
4
17
11
8
40.902.06
16
11
7
13
14
1
10
6
40.902.06
9
15
12
3
2
18
5

Артикул

Название

Примечание

Количество

1

47422550

MOUNT

3" Valve

1шт.

2

84283082

FITTING,3" Flange x 3" 45 Degree Hose Barb Elbow

3" Flange x 3" Hose Barb, Poly

1шт.

3

BN321073

GASKET,3" Flange, EPDM

3" Flange, EPDM

4шт.

4

BN321074

CLAMP,101.6mm

3" Flange

4шт.

5

BN2393384

CAP

3" CAM, Poly

1шт.

6

416624A1

ROPE

1/4" x 12"

1шт.

7

BN321075

FITTING,3" Flange x 3" Hose Barb, Poly

3" Flange x 3" Hose Barb, Poly

1шт.

8

BN321082

FITTING,3" Flange x 3" 90 Degree Hose Barb Elbow

3" Flange x 3" Hose Barb, Poly

2шт.

9

BN321071

FITTING,3" Flange x 3" Hose Barb Tee

Manifold, 3"

1шт.

10

BN2403395

CLAMP

T-Bolt Band 3.56"

8шт.

11

87021162

CLAMP,88.9mm, Coat, 8.7mm Bolt Hole, P Type

88.9mm, M8 Bolt, ZND

2шт.

12

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

13

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

14

306132C1

CABLE TIE,14.5" L

CABLE STRAP

1шт.

15

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

16

BN326025

HOSE,3.00" ID BULK

Suction, EPDM

14шт.

17

47421018

VALVE,3" Flange x 3" Male Adapter

3" Flange x 3" Cam, Poly

1шт.

18

BN50948

BOLT,Hex, 3/8" - 16 x 2 1/2", Stainless

3/8" x 16 x 2-1/2", SST

2шт.

Выбрано товаров: 18
