Запчасти Case IH 4430 (40.902.21[01 ]) - OPTIONAL FRONT FILL SERIAL NUMBER YDT034818 AND BEFORE (40 ) - PLUMBING

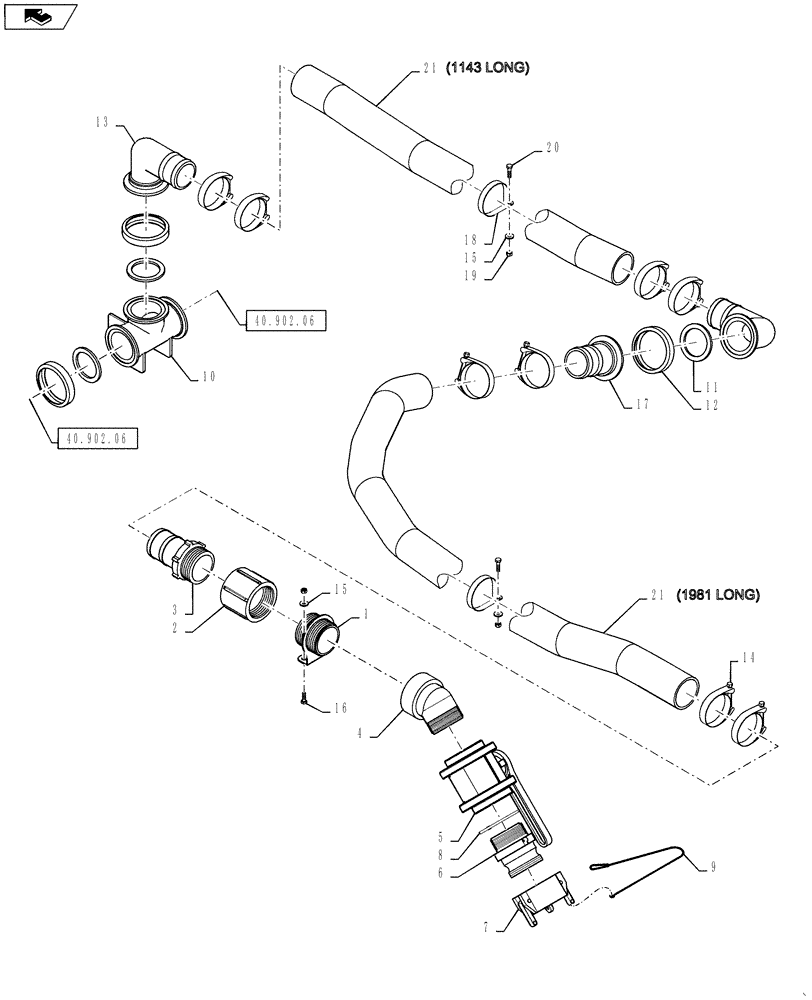

Схема запчастей Case IH 4430 - (40.902.21[01 ]) - OPTIONAL FRONT FILL SERIAL NUMBER YDT034818 AND BEFORE (40 ) - PLUMBING
15
15
21
19
17
10
21
20
9
3
40.902.06
5
7
2
12
1
40.902.06
16
13
18
4
14
11
8
6
home

Артикул

Название

Примечание

Количество

1

84410641

MOUNT

3" Valve

1шт.

2

84410722

PIPE COUPLING,76.2mm ID x 91.281mm L

3" FPT x 3" FPT, Poly

1шт.

3

BN85678

FITTING

3" NPT x 3" Hose Barb, Poly

1шт.

4

BN317995

ELBOW

3" MPT x 3" FPT, Poly

1шт.

5

BN303208

VALVE

Ball, 3" FPT x 3" FPT, Poly

1шт.

6

BN2393306

COUPLING

3" MPT x 3" CAM, Poly

1шт.

7

BN2393384

CAP

3" CAM, Poly

1шт.

8

306132C1

CABLE TIE,14.5" L

CABLE STRAP

1шт.

9

416624A1

ROPE

1/4" x 12"

1шт.

10

BN321071

FITTING,3" Flange x 3" Hose Barb Tee

Manifold, 3"

1шт.

11

BN321073

GASKET,3" Flange, EPDM

3" Flange, EPDM

3шт.

12

BN321074

CLAMP,101.6mm

3" Flange

3шт.

13

BN321082

FITTING,3" Flange x 3" 90 Degree Hose Barb Elbow

3" Flange x 3" Hose Barb, Poly

2шт.

14

BN2403395

CLAMP

T-Bolt Band 3.56"

8шт.

15

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

3шт.

16

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

17

BN321075

FITTING,3" Flange x 3" Hose Barb, Poly

3" Flange x 3" Hose Barb, Poly

1шт.

18

87021162

CLAMP,88.9mm, Coat, 8.7mm Bolt Hole, P Type

88.9mm, M8 Bolt, ZND

2шт.

19

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

20

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

21

BN326025

HOSE,3.00" ID BULK

Suction, EPDM

10.25шт.

Выбрано товаров: 21
