Запчасти Case IH 4430 (40.902.20) - TANK GROUP, LIQUID PLUMBING (40 ) - PLUMBING

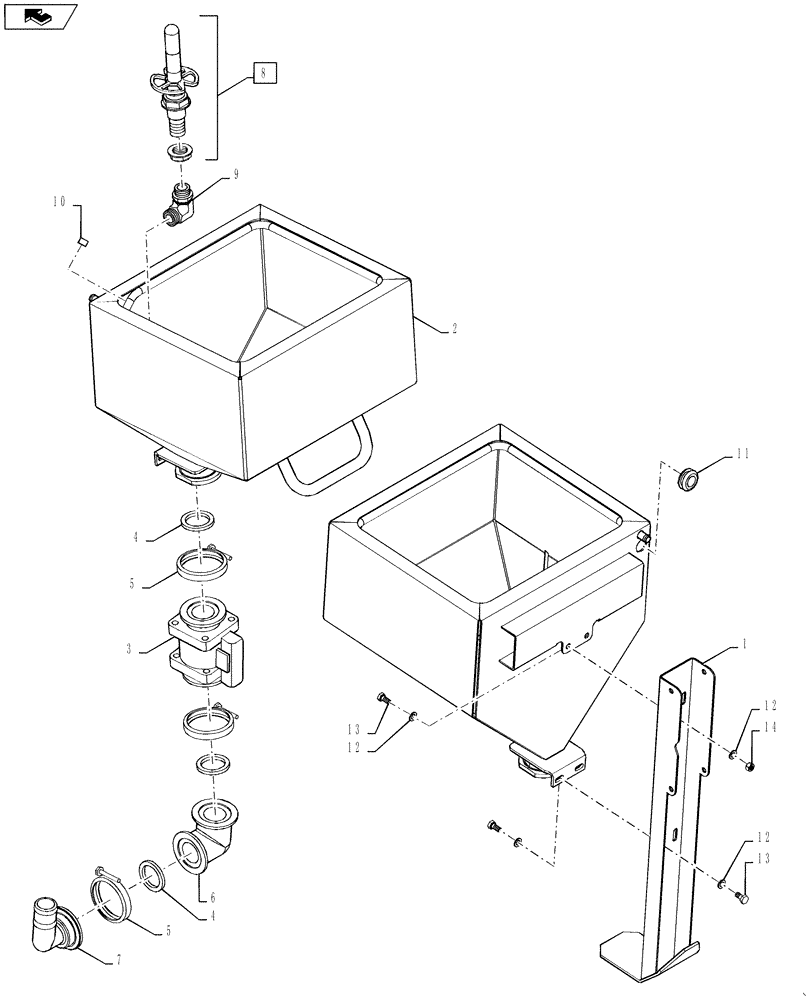

Схема запчастей Case IH 4430 - (40.902.20) - TANK GROUP, LIQUID PLUMBING (40 ) - PLUMBING
12
1
11
12
7
8
2
home
5
5
14
9
10
12
6
4
3
13
4
13

Артикул

Название

Примечание

Количество

1

BN322941

BRACKET

Mount, Induction Tank

1шт.

2

BN320983

TANK

Inductor

1шт.

3

BN304328

VALVE,2" FP Valve w/C-Flng & T Handle

Ball, 2" Flange, With Handle

1шт.

4

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

3шт.

5

BN303199

CLAMP,2" Flange

2" Standard Flange

3шт.

6

BN320903

COUPLING,2" x 2" 90 Degree Short Flange

2" Flange x 2" Flange, Poly

1шт.

7

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 1/2" Hose Barb, Poly

1шт.

8

BN310895

VALVE

Inductor Tank Rinse

1шт.

9

BN73511

FITTING

90° 1/2" Female NPT x 1/2" Male NPT

1шт.

10

BN311050

PLUG

1/8", Poly

1шт.

11

BN85855

GROMMET

For 1/2" Hose

1шт.

12

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

8шт.

13

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

14

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

15

BN53630

LATCH

Inductor Tank Lid, Not Shown

1шт.

Выбрано товаров: 15
