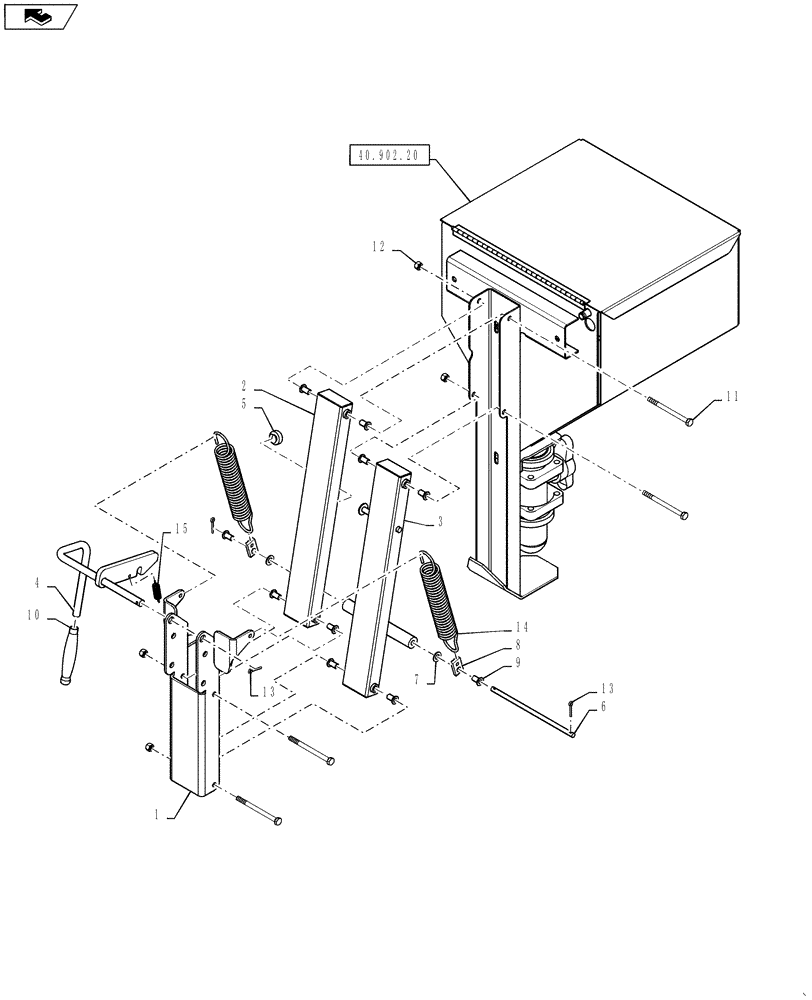

Запчасти Case IH 4430 (40.902.19) - CHEMICAL INDUCTOR TANK GROUP WITH LINKAGE (40 ) - PLUMBING

1

BN324764

MOUNT

Mount, Linkage Arm

1шт.

2

BN318197

ARM

Upper Linkage

1шт.

3

BN318198

ARM

Lower Linkage

1шт.

4

BN318200

LATCH

Linkage Arm

1шт.

5

BN319152

RUBBER BUMPER

1" OD

1шт.

6

BN319247

PIN,7.94mm OD x 210mm L

Spring Retension

1шт.

7

BN319150

WASHER

3/8, Nylon

2шт.

8

BN319106

ADJUSTING PLATE

Adjustment

2шт.

9

BN319151

BUSHING

5/16, Shouldered, Nylon

10шт.

10

BN29274

GRIP

Black-Vinyl, .5 id x 4" Long

1шт.

11

87342752

BOLT

5/16-18 X 4", G5

4шт.

12

87343959

NUT,5/16" - 18, GR B, DOR

4шт.

13

BN1630425

PIN, SPLIT (COTTER)

PIN, COTTER 1/8 X 1

3шт.

14

84588820

TENSION SPRING

1-7/8" OD x 7-7/8" Long

2шт.

15

BN311889

SPRING

.50 X 2.00 X .067, Stainless Steel

1шт.
