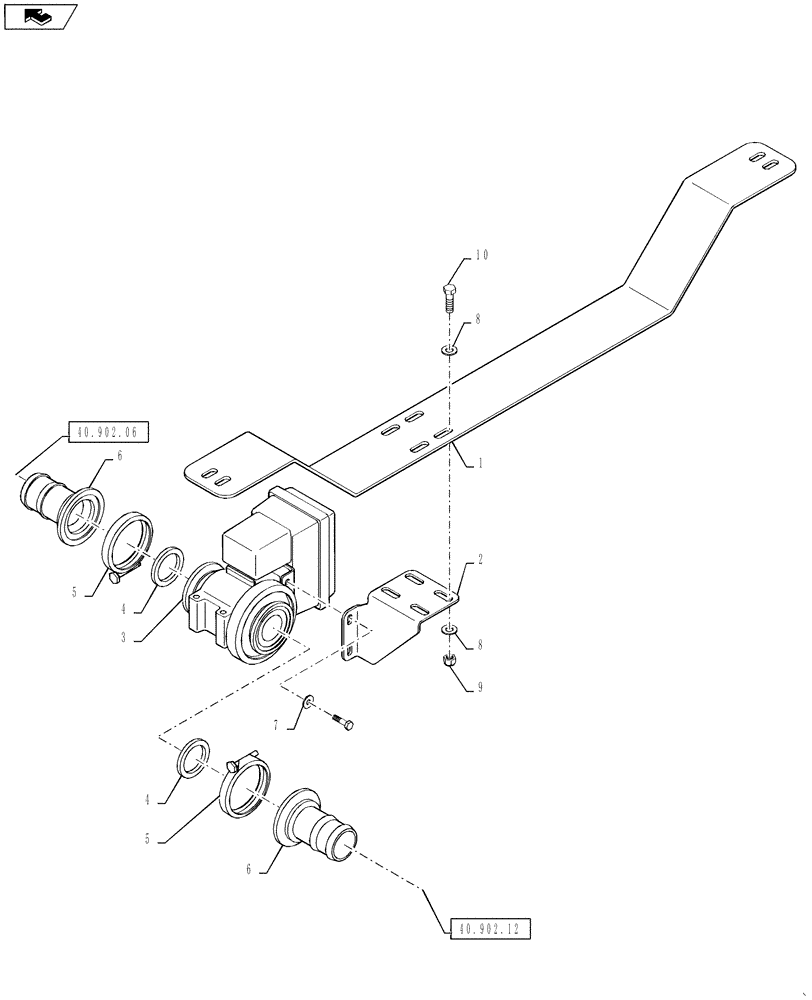

Запчасти Case IH 4430 (40.902.09) - SPARGE VALVE (40 ) - PLUMBING

1

84495467

SUPPORT

Sparge Valve Support Mount

1шт.

2

87268149

BRACKET, SUPPORTING

Mount, Sparge Valve

1шт.

3

87268174

VALVE

1-1/2" Ball, Electric

1шт.

See Fig 40.901.07 For Service Parts

1шт.

4

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

2шт.

5

BN303199

CLAMP,2" Flange

2" Standard Flange

2шт.

6

BN303198

FITTING,2" Flange x 2" Hose Barb, Poly

2" Flange x 2" Hose Barb, Poly

2шт.

7

BN50138

WASHER,1/4", SS

2шт.

8

87529237

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

0.406 x 0.812 x 0.065, HTS, DOR, HDN

8шт.

9

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

10

BN50258

BOLT,3/8"-16 X 1.25", Stainless

4шт.
