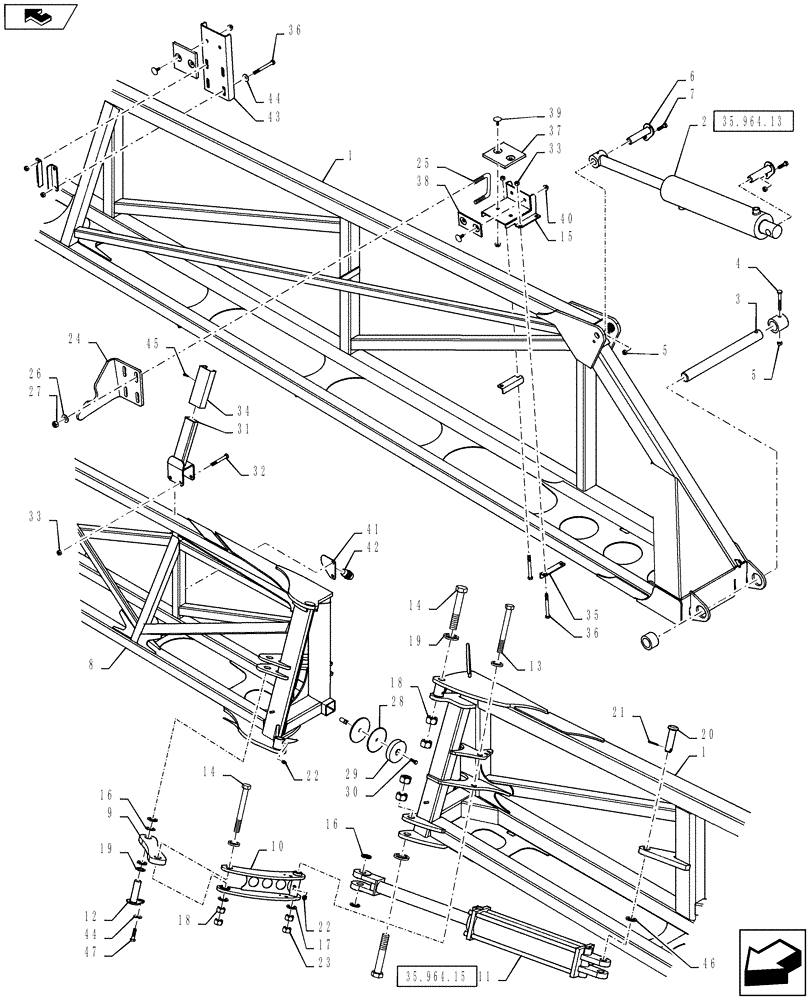

Запчасти Case IH 4430 (39.130.19) - BOOM MOUNTING, INNER AND MID BOOM, RH, 120 BOOM (39) - FRAMES AND BALLASTING

1

87397253

BOOM

Inner, RH, 120'

1шт.

2

87566312

HYDRAULIC CYLINDER,Double Acting, 41.27mm Rod, 368.3mm Stroke

Boom Level Cylinder, 120' Boom

1шт.

See Fig 35.964.13 For Service Parts Breakdown

1шт.

3

BN326079

PIN,38.1mm OD x 408.94mm L

Boom Pivot

1шт.

4

87698857

BOLT,Hex, M10 x 80mm, Cl 10.9

M10 X 80, CL 10.9, DOR

1шт.

5

87344003

NUT,M10-1.5, 10, DOR

4шт.

6

BN305621

PIN

Boom Level Cylinder

2шт.

7

87315279

BOLT,Hex, M10 x 35mm, Cl 10.9

2шт.

8

84305029

BOOM

Middle, RH, 120'

1шт.

9

84306382

ARM

Single

1шт.

10

84126409

ARM

Double

1шт.

11

87446384

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

Mid Boom Fold Cylinder

1шт.

See Fig 35.964.15 For Service Parts Breakdown

1шт.

12

BN307223

PIN,25.4mm OD x 85.85mm L

Locking, 85mm Long

1шт.

13

87564718

BOLT

3/4-10 X 7, GR 5 DOR

1шт.

14

87698751

BOLT

1-8 X 6, GR8, DOR

3шт.

15

87666132

SUPPORT

Upper Cradle, RH

1шт.

16

87564721

WASHER,1.02" ID x 1.5" OD x 0.12" Thk

1.016 X 1.50 X .134, CST, DOR

12шт.

17

87564720

WASHER,0.78" ID x 1.25" OD x 0.07" Thk

2шт.

18

87343673

NUT

1.000-8 GR8

8шт.

19

87564722

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

1.016 X 1.50 X .075 CST DOR

6шт.

20

87735776

PIN,25.4mm OD x 111.5mm L

1" x 3.6"

1шт.

21

87399

COTTER PIN,1/2 x 3 Bolt

1шт.

22

219-8

LUBE NIPPLE,1/4" - 28 NPTF

3шт.

23

87343671

NUT

3/4-10, GR 5, DOR

4шт.

24

84204420

CRADLE

Inner Boom, RH

1шт.

25

1404

U-BOLT

.5 x 3.125" W x 4.25" D

2шт.

26

87528989

WASHER,12.2mm ID x 30mm OD x 2.5mm Thk

M12 x 30 x 2.5, DOR

4шт.

27

87343983

NUT

1/2"-13, DOR

4шт.

28

87501591

WASHER,10.3mm ID x 101.6mm OD x 2.08mm Thk

10mm x 102mm x 1.9 mm

3шт.

29

87501590

BUMPER

Poly, 89mm OD x 19MM Thick

1шт.

30

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

31

87621178

STOP

Boom Breakaway

1шт.

32

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

33

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

10шт.

34

87573707

CHANNEL

Snap-On 1" x 2" x 6"

1шт.

35

87666126

MOUNTING PARTS

Plate, Cradle

4шт.

36

86980410

BOLT,Hex, M10 x 100mm, Cl 8.8

M10-1.5 X 100, 8.8, DOR

8шт.

37

BN320995

PAD

Boom Rest, Bottom

2шт.

38

BN319335

PAD

Boom Rest

1шт.

39

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

6шт.

40

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

6шт.

41

87681832

STOP

Door

1шт.

42

363226A1

BUMPER

Door

1шт.

43

87705378

PLATE

Boom Stop

1шт.

44

86981677

WASHER,11mm ID x 30mm OD x 2.5mm Thk

5шт.

45

84206102

SCREW,7/8" - 24

#12-24 X 7/8

2шт.

46

87529235

WASHER,1.06" ID x 2" OD x 0.21" Thk

1.0625 x 2 x 0.209, HTS, DOR

1шт.

47

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.
