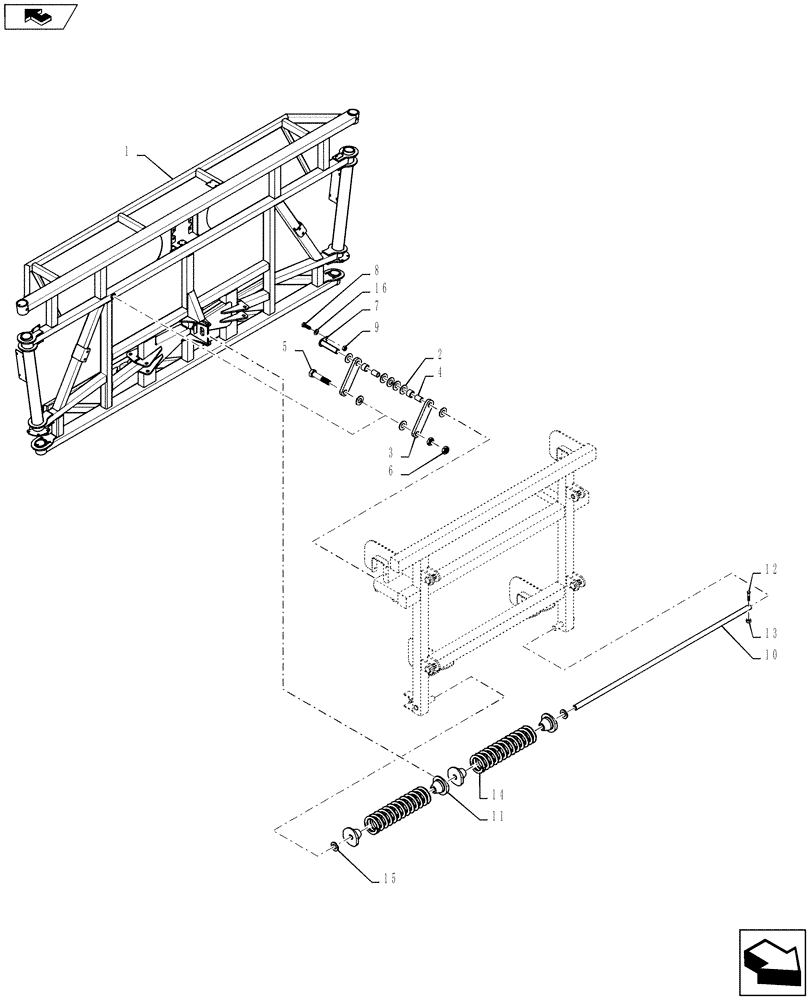

Запчасти Case IH 4430 (39.130.16) - CENTER SECTION MAST, 120’ BOOM (39) - FRAMES AND BALLASTING

1

87537733

MAST ASSEMBLY

Center Section, 120'

1шт.

2

87529124

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

1.062 x 2.50 x .165 CST, DOR

16шт.

3

87707145

HANGER

Center Boom, Bracket

4шт.

4

87714127

BUSHING

Hanger

4шт.

5

87310330

BOLT

1-14 x 6, Gr 5

2шт.

6

87310319

JAM NUT,1"-14, G8

4шт.

7

BN306785

PIN

Hanger

2шт.

8

87695423

BOLT,Hex, M10 x 30mm, Cl 10.9

M10 X 30, 10.9, DOR

2шт.

9

87344003

NUT,M10-1.5, 10, DOR

2шт.

10

87543736

ROD

Spring Retainer

1шт.

11

87536126

RETAINER

Spring

4шт.

12

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

13

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

14

87700743

COMPRESSION SPRING

120' Boom

2шт.

15

87529235

WASHER,1.06" ID x 2" OD x 0.21" Thk

1.0625 x 2 x 0.209, HTS, DOR

2шт.

16

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.
