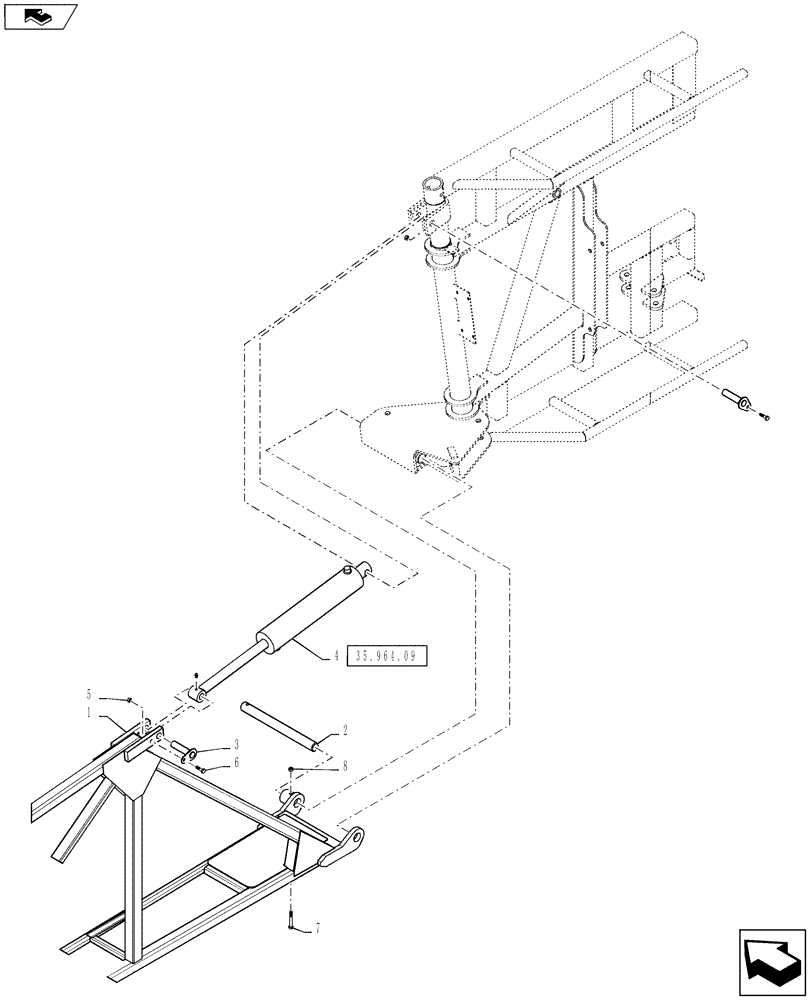

Запчасти Case IH 4430 (39.130.07) - LH INNER BOOM, 90/100 BOOM (39) - FRAMES AND BALLASTING

1

BN326077

FRAME

Inner Boom Section, LH

1шт.

2

BN326079

PIN,38.1mm OD x 408.94mm L

Boom Pivot

1шт.

3

BN305621

PIN

Boom Level Cylinder

2шт.

4

87266461

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 533.4mm Stroke

Boom Level, 3.00 x 21 x 1.50

1шт.

See Fig 35.964.09 For Service Parts Breakdown

1шт.

4

87266461R

REMAN-HYD CYLINDER

4430 PATRIOT SPRAYER TIER 4, Boom Level, LH (9/11-)

1шт.

4

87266461C

CORE-HYD CYLINDER

Return Number

1шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

6

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

7

87342784

BOLT

3/8-16 x 3 1/2", G5

1шт.

8

87343970

NUT,3/8"-16, G8, DOR

1шт.
