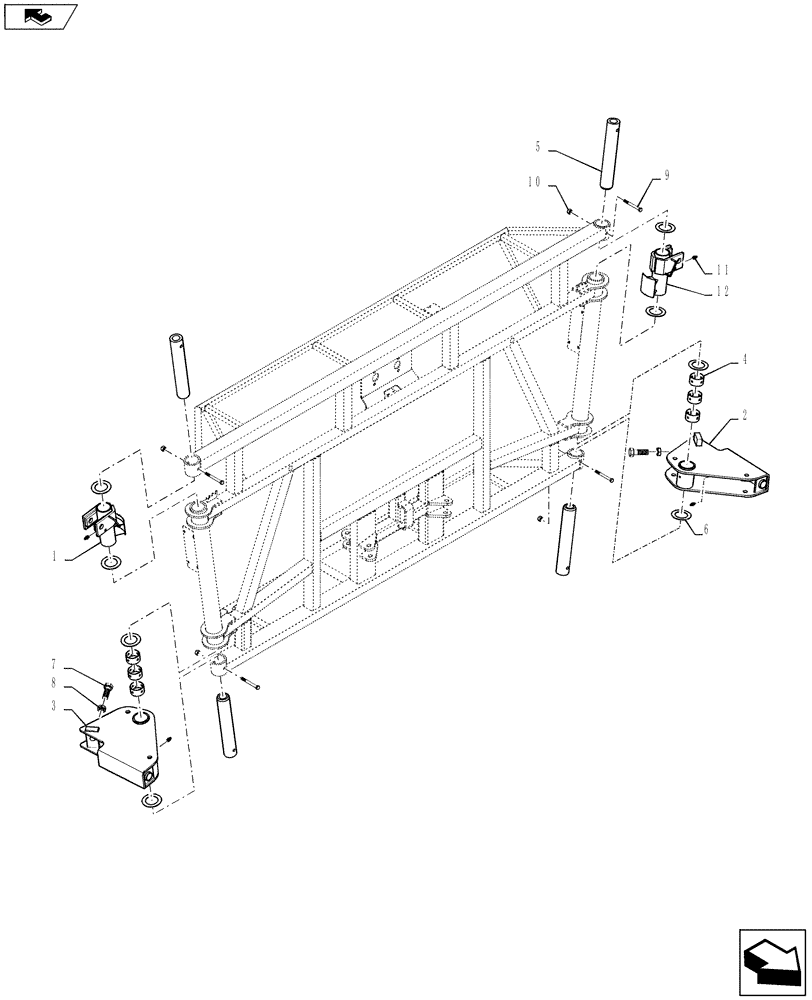

Запчасти Case IH 4430 (39.130.04) - MAST PIVOT ASSEMBLY, 90/100 BOOM (39) - FRAMES AND BALLASTING

1

84355734

MOUNT

RH, Upper Cylinder

1шт.

2

87268416

PIVOT

Inner Boom, LH

1шт.

3

87268417

PIVOT

Inner Boom, RH

1шт.

4

87552137

BEARING COVER

Sleeve, Lower

6шт.

5

BN306646

TUBE

Inner Pivot

4шт.

6

BN302048

SHIM,64.01mm ID x 98.55mm OD x 2.55mm Thk

3.88" od x 2.52 id x 14 GA

8шт.

7

87644287

BOLT

1-14 x 3, GR8, DOR

2шт.

8

87310319

JAM NUT,1"-14, G8

2шт.

9

86980431

BOLT

M12-1.75 X 110, 8.8 DOR

4шт.

10

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

4шт.

11

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

6шт.

12

84355742

MOUNT

LH, Upper Cylinder

1шт.
