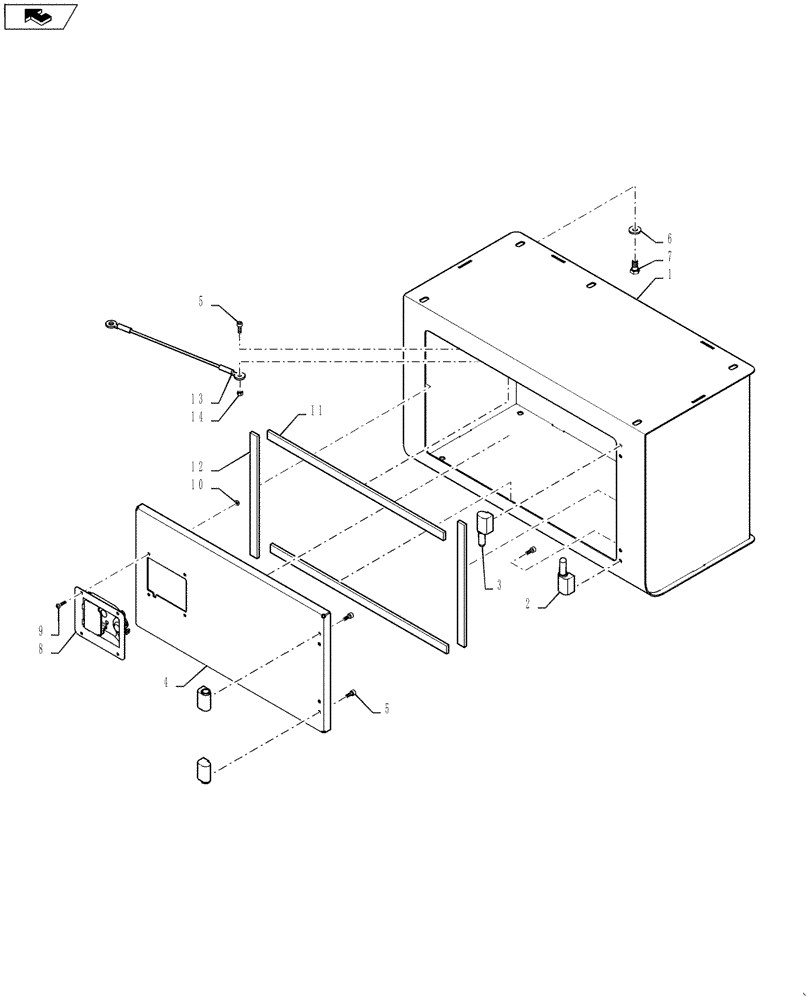

Запчасти Case IH 4430 (39.100.02) - STORAGE BOX (39) - FRAMES AND BALLASTING

1

87741533

BOX

Storage

1шт.

2

BN306286

HINGE

Nylon, Type B, M6

1шт.

3

BN306290

HINGE

Nylon, Type A, M6

1шт.

4

87555040

DOOR

Storage Box

1шт.

5

87343625

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

M6 x 16, CL8.8 DOR

10шт.

6

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

5шт.

7

86980399

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10 x 20, 8.8, DOR

5шт.

8

BN323944

LATCH

Paddle Handle

1шт.

9

BN311631

BOLT,#10 - 24 x 3/4", SST

10-24 x .75, BSH, Stainless Steel

4шт.

10

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

4шт.

11

BN323949

SEALING STRIP

Trim

2шт.

12

87268931

SEAL

Trim

2шт.

13

F64526

CABLE

Door

1шт.

14

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.
