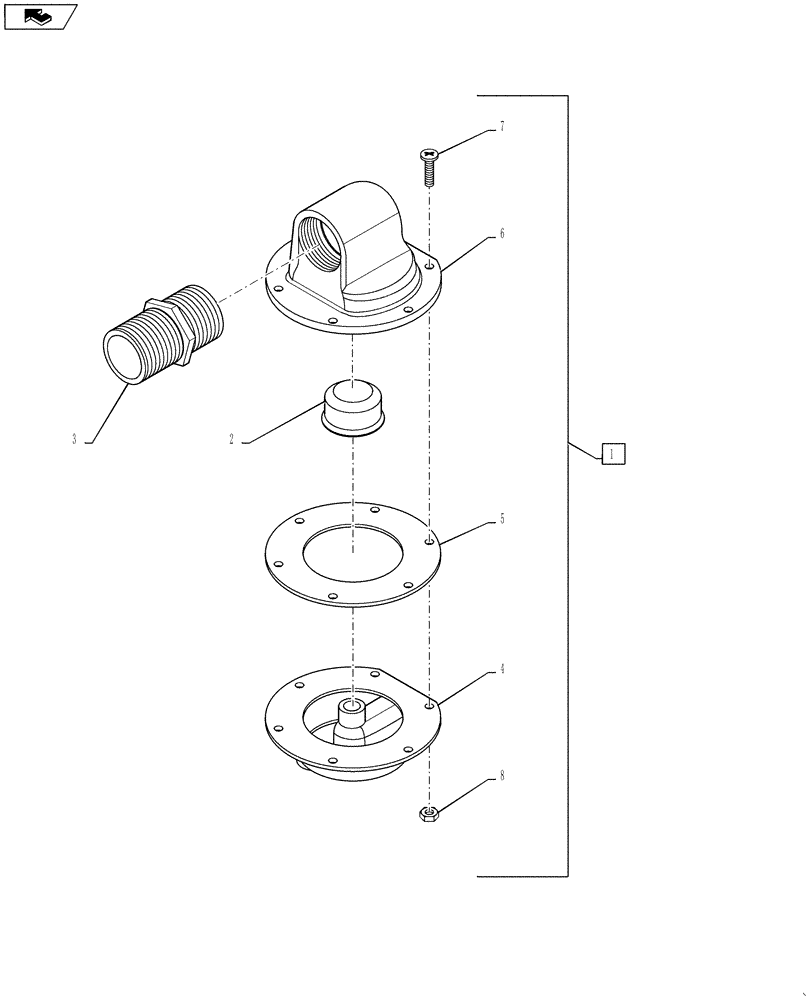

Запчасти Case IH 4430 (36.330.10) - FOAM MARKER MIXING CHAMBER ASSEMBLY, RH (36) - PNEUMATIC SYSTEM
2
6
home
4
1
3
8
5
7
№
Артикул
Название
Примечание
Количество
1
BN307636
CHAMBER
Foam Mixing, Assembly
1шт.
2
BN21965
PLATE
Foam Head, 3/8" Screen Strainer
1шт.
3
BN313211
NIPPLE
Hex, 1 - 1/4"
1шт.
4
21964
HOUSING
Base, Foam Mixing Chamber
1шт.
5
21966
GASKET
Foam Mixing Chamber
1шт.
7
NSS
NOT SOLD SEPARAT
10 - 24 x 7/8", Stainless Steel Screw
6шт.
8
NSS
NOT SOLD SEPARAT
10 - 24, Stainless Steel, Nyloc Nut
6шт.
Выбрано товаров: 8
