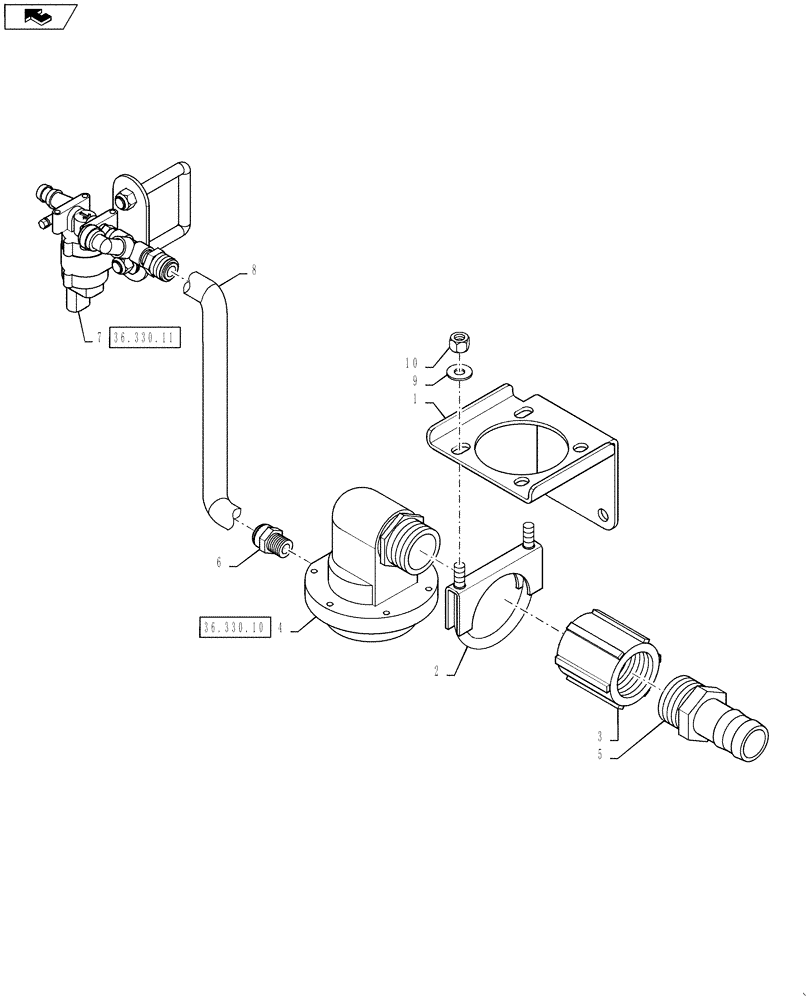

Запчасти Case IH 4430 (36.330.09) - FOAM MARKER CHAMBER GROUP, RH (36) - PNEUMATIC SYSTEM

1

87266740

PLATE

Foamer Chamber

1шт.

2

BN21276

CLAMP

2-1/2"

1шт.

3

BN305269

COUPLING

1-1/4" NPT, Poly

1шт.

4

BN307636

CHAMBER

Foam Mixing

1шт.

See Fig 36.330.10 For Service Parts Breakdown

1шт.

5

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

6

BN2399412

ADAPTER

3/8" MPT x 3/8" OD Tube, Push Lock Fitting

1шт.

7

87663822

VENTURI

Solenoid Assembly, RH

1шт.

See Fig 36.330.11 For Service Parts Breakdown

1шт.

8

84422568

TUBE,3/8" X 50' BULK, SAE J844, BLACK

Air, Synflex 3/8" Black, Bulk, Cut From Bulk To Lenght Of 15"

1шт.

9

87529237

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

0.406 x 0.812 x 0.065, HTS, DOR, HDN

2шт.

10

87343970

NUT,3/8"-16, G8, DOR

2шт.
