(36.330.07) - FOAM MARKER CENTER SECTION SOLENOID GROUP

Запчасти Case IH 4430 (36.330.07) - FOAM MARKER CENTER SECTION SOLENOID GROUP (36) - PNEUMATIC SYSTEM

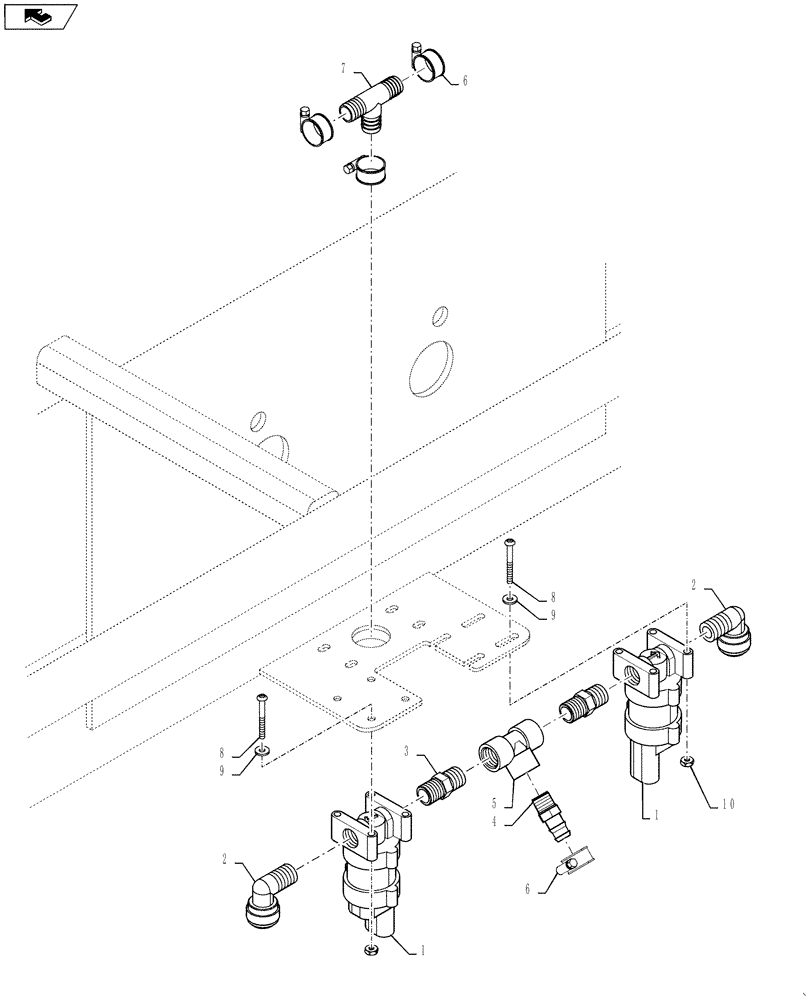

Схема запчастей Case IH 4430 - (36.330.07) - FOAM MARKER CENTER SECTION SOLENOID GROUP (36) - PNEUMATIC SYSTEM
6
5
2
9
8
2
10
3
1
8
1
home
6
9
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN307938

VALVE

Solenoid, 1/4" NPT

2шт.

2

BN2399411

ADAPTER

Elbow, 1/4" MPT x 3/8" OD Tube, Push Lock Fitting

2шт.

3

86986808

NIPPLE

1/4" Short, Poly

2шт.

4

86986810

FITTING

3/8" Hose Barb x 1/4" NPT, Poly

1шт.

5

86986807

TEE

1/4" NPT, Poly

1шт.

6

BN324022

HOSE CLAMP

#8, Stainless Steel

4шт.

7

BN324009

TEE

1/2" Hose Barb, Poly

1шт.

8

BN317051

BOLT

6 - 32 x 1.25"

8шт.

9

87529123

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

0.156" x 0.375" x 0.049" CST DOR

4шт.

10

BN317053

LOCK NUT

6 - 32, Nylon

8шт.
