(36.330.04) - FOAM MARKER TANK, 55 GALLON, WITH FITTINGS

Запчасти Case IH 4430 (36.330.04) - FOAM MARKER TANK, 55 GALLON, WITH FITTINGS (36) - PNEUMATIC SYSTEM

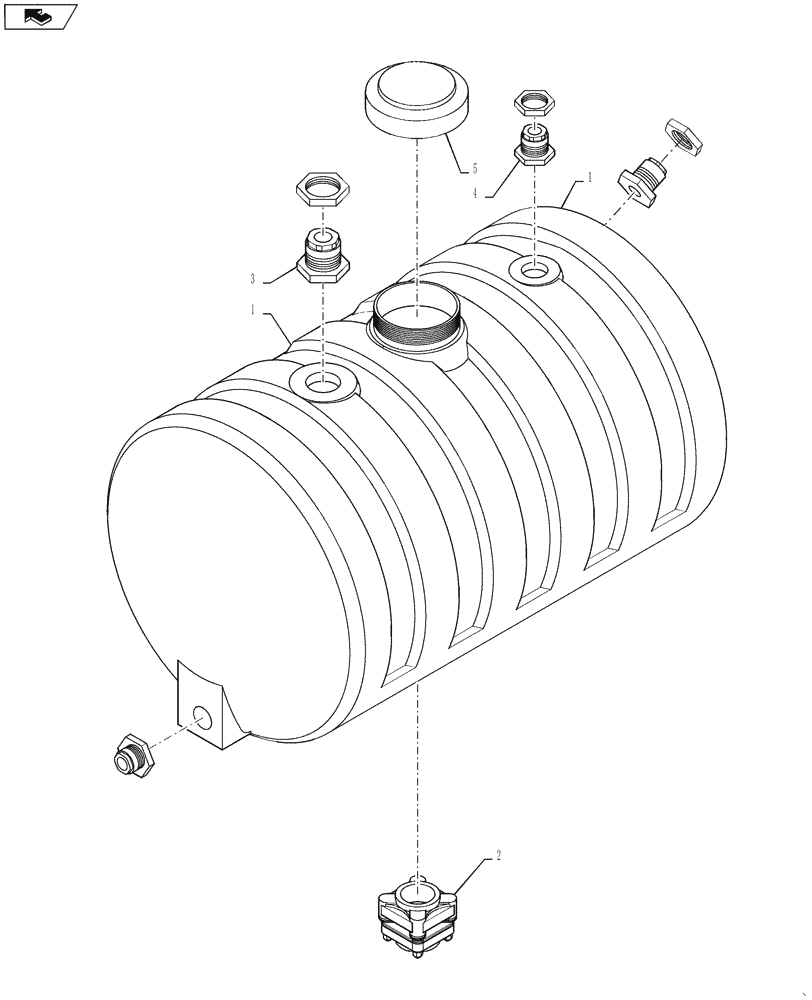

Схема запчастей Case IH 4430 - (36.330.04) - FOAM MARKER TANK, 55 GALLON, WITH FITTINGS (36) - PNEUMATIC SYSTEM
1
4
3
1
home
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

87270475

TANK

Complete, Includes Ref 1 Through 5

1шт.

1

343431A1

TANK

Foam Marker, Without Fittings

1шт.

2

87265596

BULKHEAD,1-1/2" x 2" Threaded EPDM Flange

1-1/2" FPT, Drain

1шт.

3

BN2403685

BULKHEAD

1" NPT

1шт.

4

406148A1

FITTING

Bulkhead, 3/4" FPT, With EPDM Gasket

3шт.

5

BN314276

COVER

Foam Marker Tank, 6", With Breather

1шт.
